Intended Audience: This guide is tailored for architects, engineers, contractors, builders, and lift installation professionals. It provides detailed specifications, structural requirements, compliance standards, and best practices for installing Symmetry Vertical Platform Lifts (VPLs). By following this guide, professionals can ensure their projects are safe, reliable, and fully compliant with building codes and accessibility standards. For project-specific assistance, consult the experts at Mobility123.
Introduction to Symmetry Vertical Platform Lifts
Symmetry Vertical Platform Lifts (VPLs) are designed to provide safe and reliable wheelchair access in both residential and commercial buildings. These lifts are ideal for overcoming barriers posed by stairs while maintaining aesthetic appeal and structural integrity.
Available Models:
- VPL-UL: Unenclosed Lift: A cost-effective, open-design platform lift ideal for indoor or outdoor applications with minimal travel height requirements (up to 60 inches). Best suited for areas where an enclosed hoistway isn’t necessary, providing quick and easy accessibility without compromising safety.
- VPL-EL: Enclosure Lift: Fully or partially enclosed with durable steel construction, this model is designed for both indoor and outdoor applications. It provides enhanced protection against environmental elements and ensures user safety with an enclosed shaft.
- VPL-ELP: Plexiglass Enclosure Lift: Similar to the VPL-EL but with plexiglass panels for enhanced aesthetics and visibility. This model combines safety and style, making it an excellent choice for public and commercial spaces where design is a priority.
- VPL-SL: Shaftway Lift: Designed to be installed within a pre-built hoistway or shaft. This model integrates seamlessly into buildings with dedicated elevator shafts, offering a clean, built-in look for multi-level access.
- VPL-Hybrid: Hybrid Lift: Combining features of both enclosure and shaftway lifts, the Hybrid model offers flexibility and customization for unique installation requirements. It is ideal for retrofitting existing buildings or addressing non-standard accessibility challenges.
Each model serves unique applications, ranging from simple unenclosed solutions for minimal height travel to fully enclosed lifts capable of operating in outdoor environments with extreme weather conditions.
Structural Requirements and Installation Considerations
Floor and Wall Support:
- Stationary Load Capacity: Floors must support a load of 3,200 lbs.
- Wall Support Requirements: Walls must withstand a pull-out force per bracket bolt as indicated on the provided plans.
- Reinforced Slab for Outdoor Installations: Outdoor lifts require a 4-inch reinforced concrete slab rated for 3,200 psi, complete with adequate drainage.
Pit Requirements:
- Standard Pit Depth: 3 inches is recommended for optimal performance.
- Low-Profile Pit Option: A 1.5-inch pit depth is available for installations requiring minimal excavation. This option can also reduce ramp length for applications without pits, offering greater flexibility in tight spaces.
- Outdoor pits must include proper drainage systems to prevent water accumulation.
Hoistway Preparation:
- Must be plumb, level, and square.
- Ensure proper overhead clearance in compliance with local building codes.
- Lintels above doors and gates must be capable of supporting additional load.
Tip: Always consult the Symmetry VPL Design Guide for precise structural requirements and diagrams.
Electrical System Overview
A robust electrical system is essential for smooth operation and compliance with NFPA 70 (NEC 620, USA):
- Power Supply: Dedicated 120VAC, 20A, 60Hz circuit with a fused disconnect.
- Lighting Requirements: Maintain at least 100 lux lighting at platforms and landings.
- Pit Requirements: Include a GFCI outlet and switch.
- Emergency Backup Systems: Optional full-speed battery backups are available for uninterrupted performance.
Pro Tip: Work with a licensed electrician to ensure compliance with local and national electrical codes.
Entrance and Exit Configurations
Gate and Door Specifications:
- Gate Height: Minimum 42 inches above the top landing.
- Gate/Platform Alignment: Ensure doors and gates align seamlessly with the platform.
- Automatic Gate Operators: Required in 90-degree access configurations or when using ramps instead of pits.
Ramp Options:
- Stationary Ramps: Ideal where pit installation isn’t feasible.
- Flip-Up Ramps: Common in unenclosed applications, requiring safety pans and interlocks.
- Low-Profile Ramps: Available when paired with the 1.5-inch low-profile pit option, reducing required ramp length.
Entry/Exit Options:
- Straight-Through Access: Simplest and most common configuration.
- 90° Access: Suitable for tight spaces or corner installations.
- Same-Side Access: Limited to specific models.

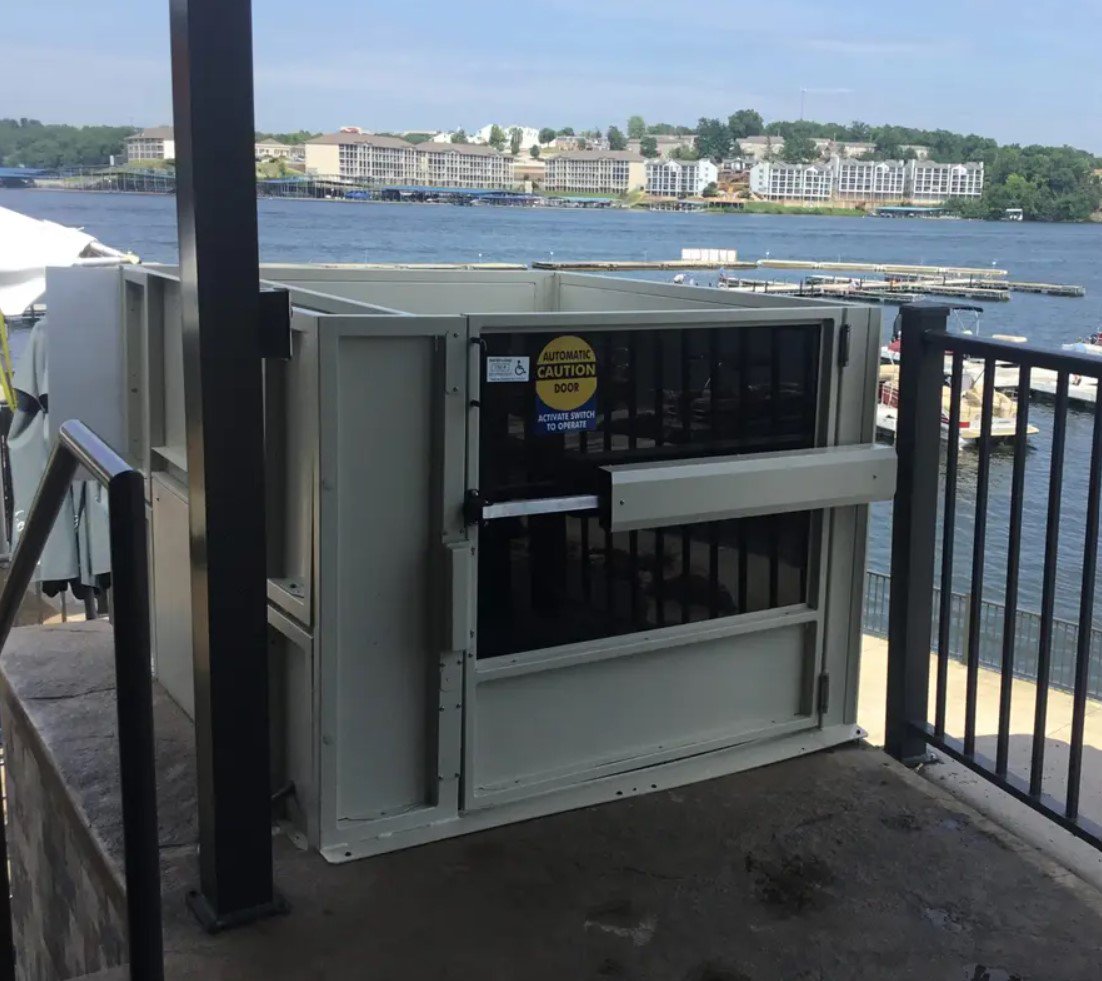

Outdoor Installation Considerations
Outdoor environments demand additional preparation:
- Foundation: Install on a 4-inch reinforced concrete slab with proper drainage.
- Weatherproofing: Use plexiglass inserts or weather-resistant enclosure materials.
- Ventilation: Fully enclosed units should include ventilation systems to prevent moisture buildup.
Extreme Weather Package:
For coastal regions or areas exposed to harsh weather, the Extreme Weather Package ensures durability and longevity.
- Powder-Coat Finish: Protects against rust and corrosion.
- Materials: Exposed components are made from 304 stainless steel, galvannealed steel, hot-dip galvanized steel, and aluminum.
This package significantly extends the lift's lifespan in challenging conditions, making it an ideal solution for coastal installations.
Compliance and Safety Standards
All Symmetry Vertical Platform Lifts comply with:
- ASME A18.1 – Safety Standards for Platform Lifts.
- ICC A117.1 – Accessible and Usable Buildings and Facilities.
- NFPA 70 (NEC 620) – Electrical Code Compliance.
- ADA Guidelines – For commercial and public spaces.
Engage local code officials early to confirm compliance and secure necessary permits.
Common Use Cases for Symmetry VPLs
- Residential Homes: Improving multi-level accessibility.
- Public Spaces: Schools, offices, libraries, and places of worship.
- Commercial Buildings: Restaurants, retail stores, and small businesses.
These lifts are adaptable, reliable, and aesthetically versatile, making them suitable for both interior and exterior applications.
Technical Specifications at a Glance
- Load Capacity: 750 lbs.
- Maximum Travel Height: Up to 168 inches.
- Speed: 10–20 feet per minute, depending on the drive system.
- Power Supply: 120VAC, 20A, 60Hz.
- Drive Options:
- Acme Screw Drive: 10 fpm
- Accelerated Acme Screw Drive: 20 fpm
- Chain Hydraulic Drive: 17–20 fpm
- Platform Sizes: 36×48, 36×54, 36×60, 42×60 inches.
- Custom Platform Sizes Available: Symmetry VPLs can be custom-designed to fit unique space constraints and project requirements.
Site Construction Details
- Floor must support 3,200 lb stationary load
- Wall must support required pull-out force per bracket bolt
- Recommended wall support: Double 2×4 studs or concrete/brick
- Outdoor requires 4" thick 3,200 psi reinforced concrete slab
Hoistway Requirements
- Must meet all applicable codes and regulations
- Plumb, level, and square with proper dimensions
- Minimum overhead clearance per governing codes
- Contractor to provide masonry, carpentry, drywall work
- Securely anchor mast to structural support wall
- Suitable lintels above doors to support loads
Electrical Requirements
- Per NEC 620 (USA)
- 120VAC, 20A, 60Hz circuit with fused disconnect
- Lighting of 100 lux minimum at platforms and landings
- GFCI outlet and switch in pit
- Additional circuits may be needed for doors and ventilation
Entrance Configuration
- Smooth solid gates 42" high above top landing
- Fascia panel below top entrance if required
- Align doors/gates with platform equipment
- Return walls installed after entrance assembly
Adhere to all applicable ASME, local codes. Consult the Symmetry VPL Design Guide for full details on specifications, drawings, site preparation, and installation.
FAQs About Symmetry VPLs
1. How does the Symmetry VPL perform in extreme weather?
The VPL operates in a wide range of temperatures and is equipped with weatherproofing options for outdoor use.
2. Are Symmetry VPLs ADA Compliant?
Yes, they comply with ADA standards when installed according to specifications.
3. What Is the Warranty Period?
A four-year limited parts warranty is standard.
4. Can These Lifts Be Customized?
Yes, with options for platform sizes, finishes, and access configurations.
5. How Often Is Maintenance Required?
Routine maintenance every 6 months is recommended.
6. Where can I find installation support?
Contact Mobility123 for planning assistance, installation services, and troubleshooting.
Partner with Mobility123 for Your VPL Projects
Installing a Symmetry Vertical Platform Lift is a significant investment in accessibility and safety. Mobility123 provides expert planning, installation, and ongoing support to ensure every project meets the highest standards.
