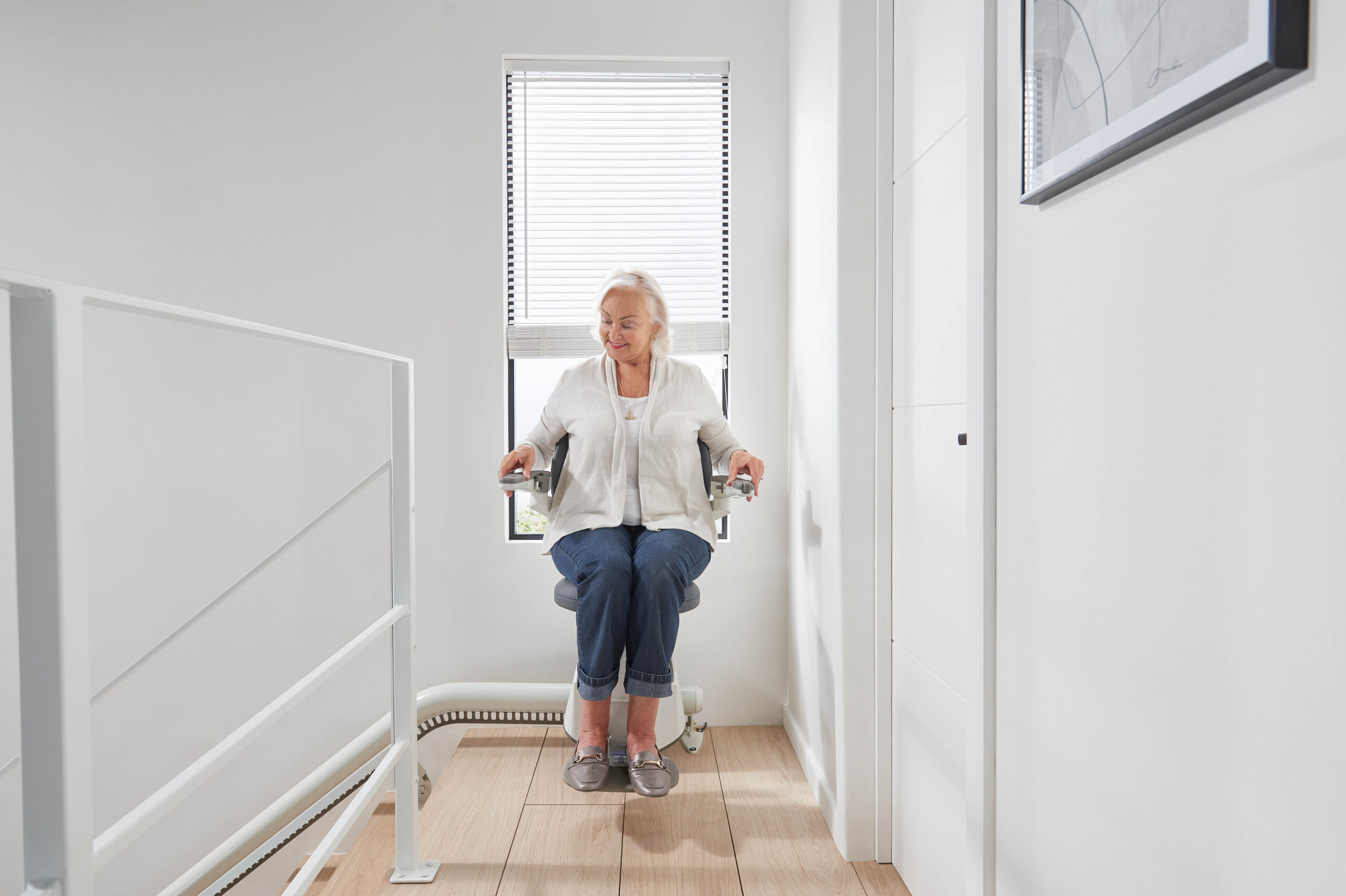

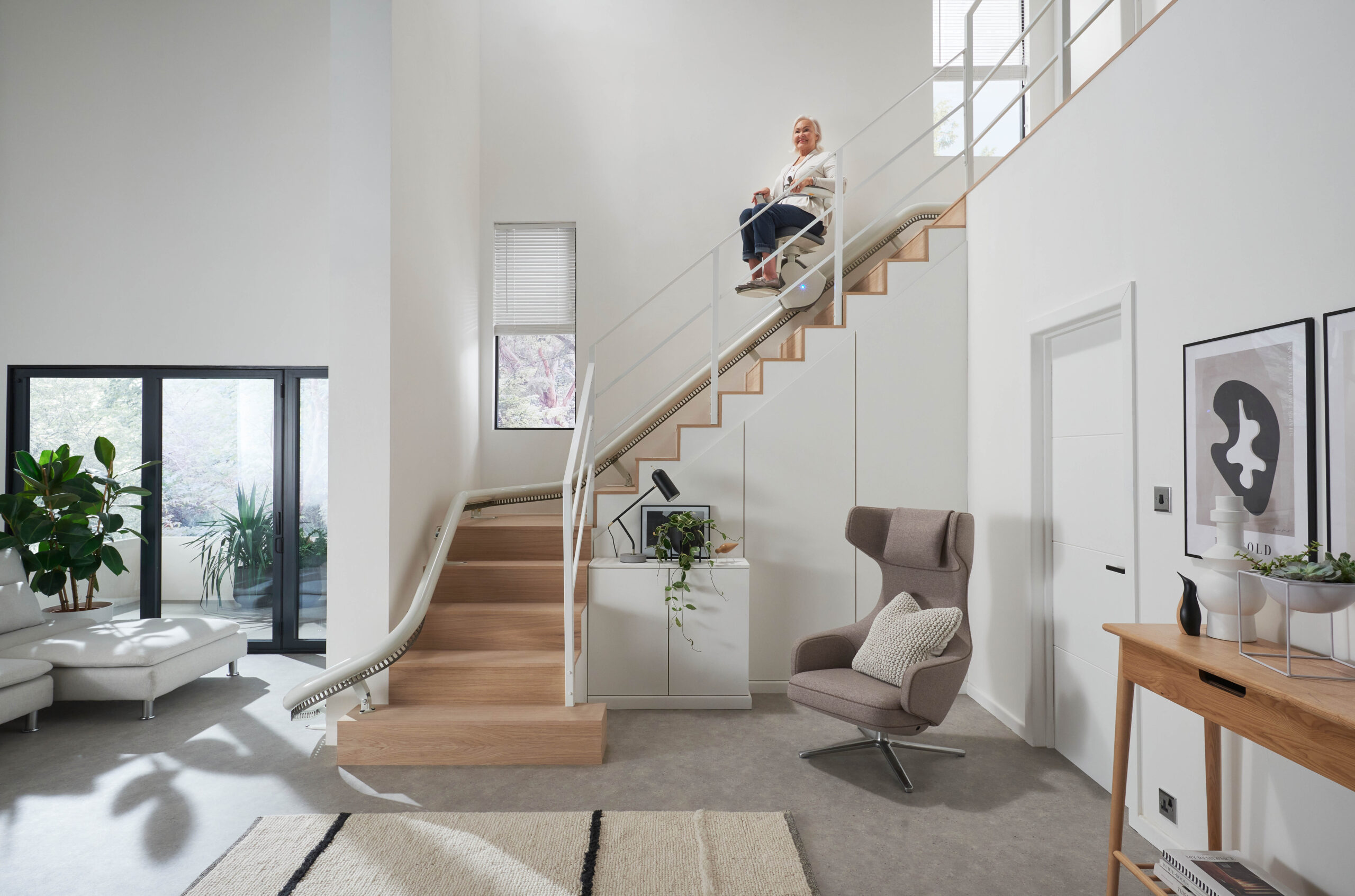

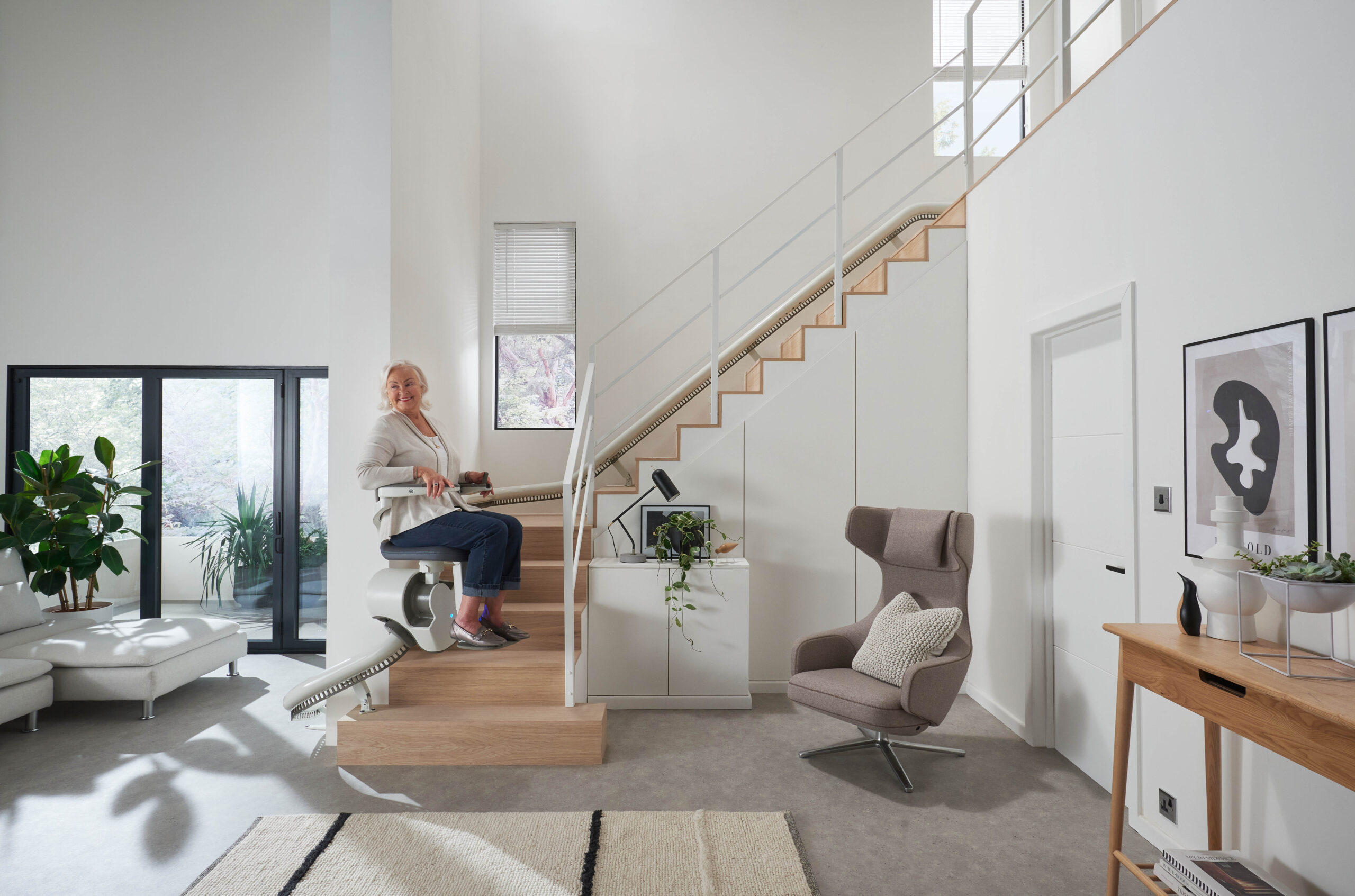

Flow X Custom Stairlift
Introducing the Flow X by Access BDD — the stairlift that redefines movement in your home. Designed for those who demand more than just functionality, Flow X blends cutting-edge technology with refined elegance to give you the freedom to move, without compromise.
Elevate Your Everyday. Effortless. Seamless. Unmatched.

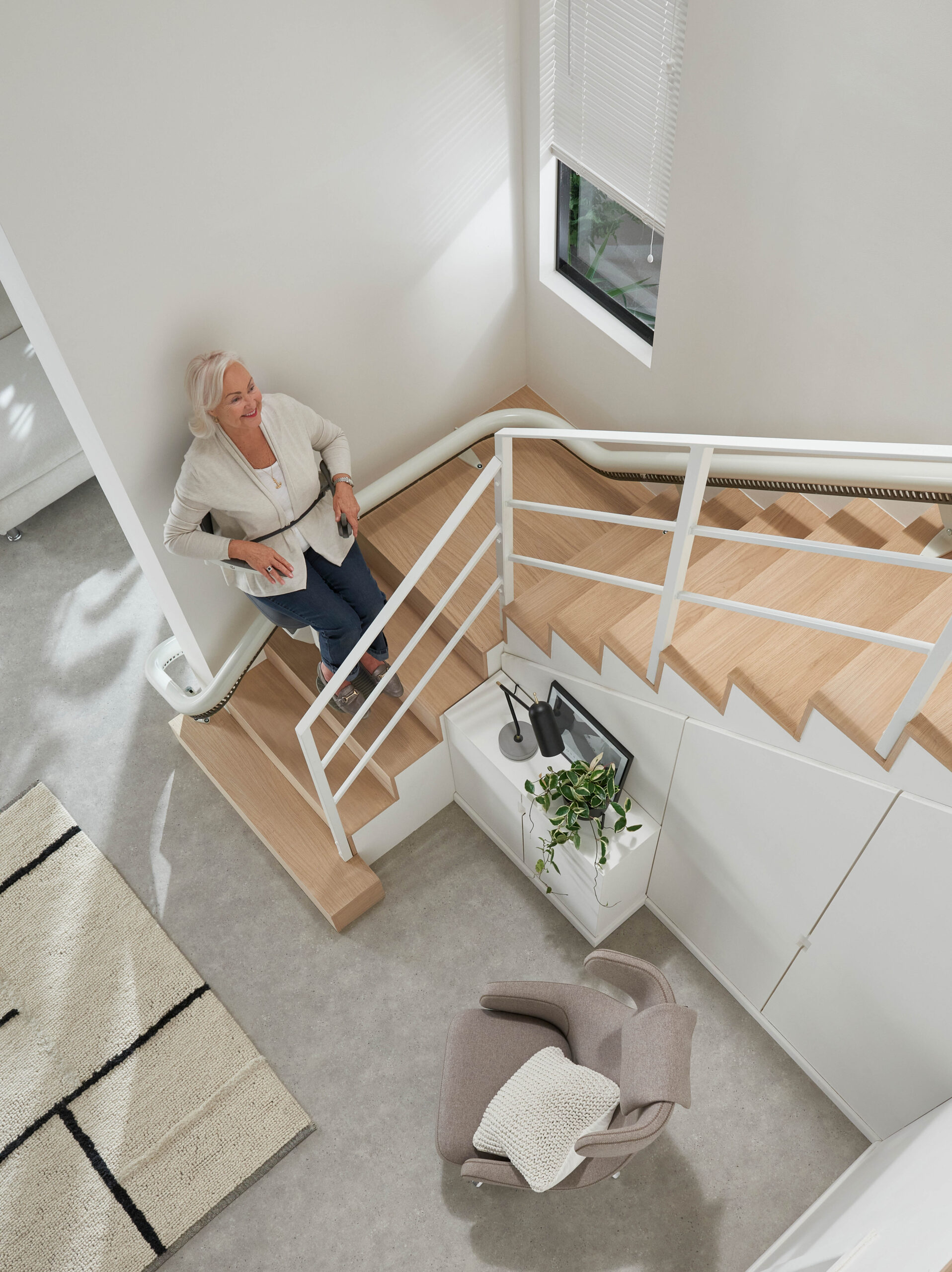

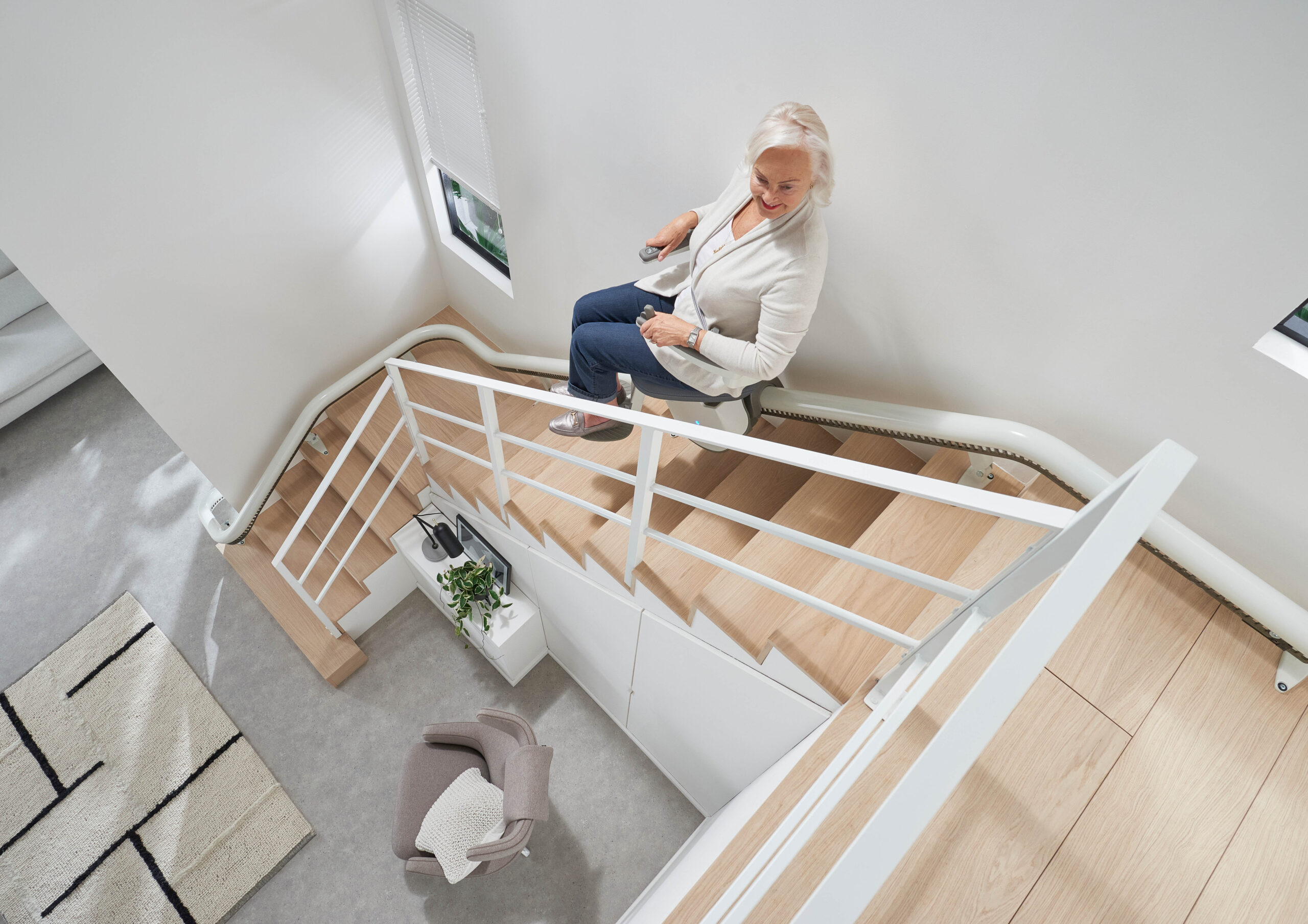

Precision in Every Move
With Advanced Swivel and Leveling (ASL) Technology, the Flow X navigates even the tightest corners with ease, ensuring a smooth, level ride every time. No bumps. No jerks. Just effortless precision.

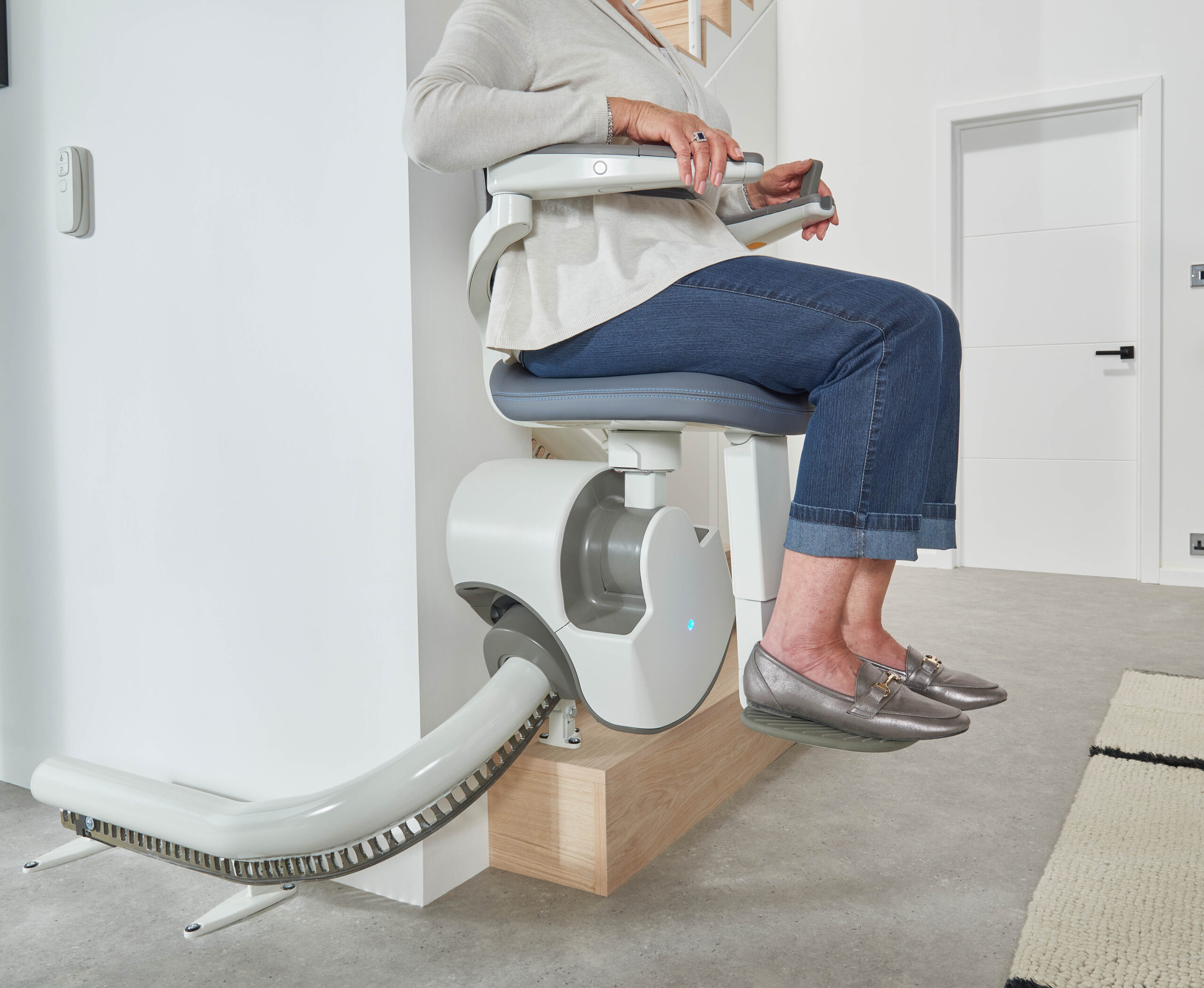

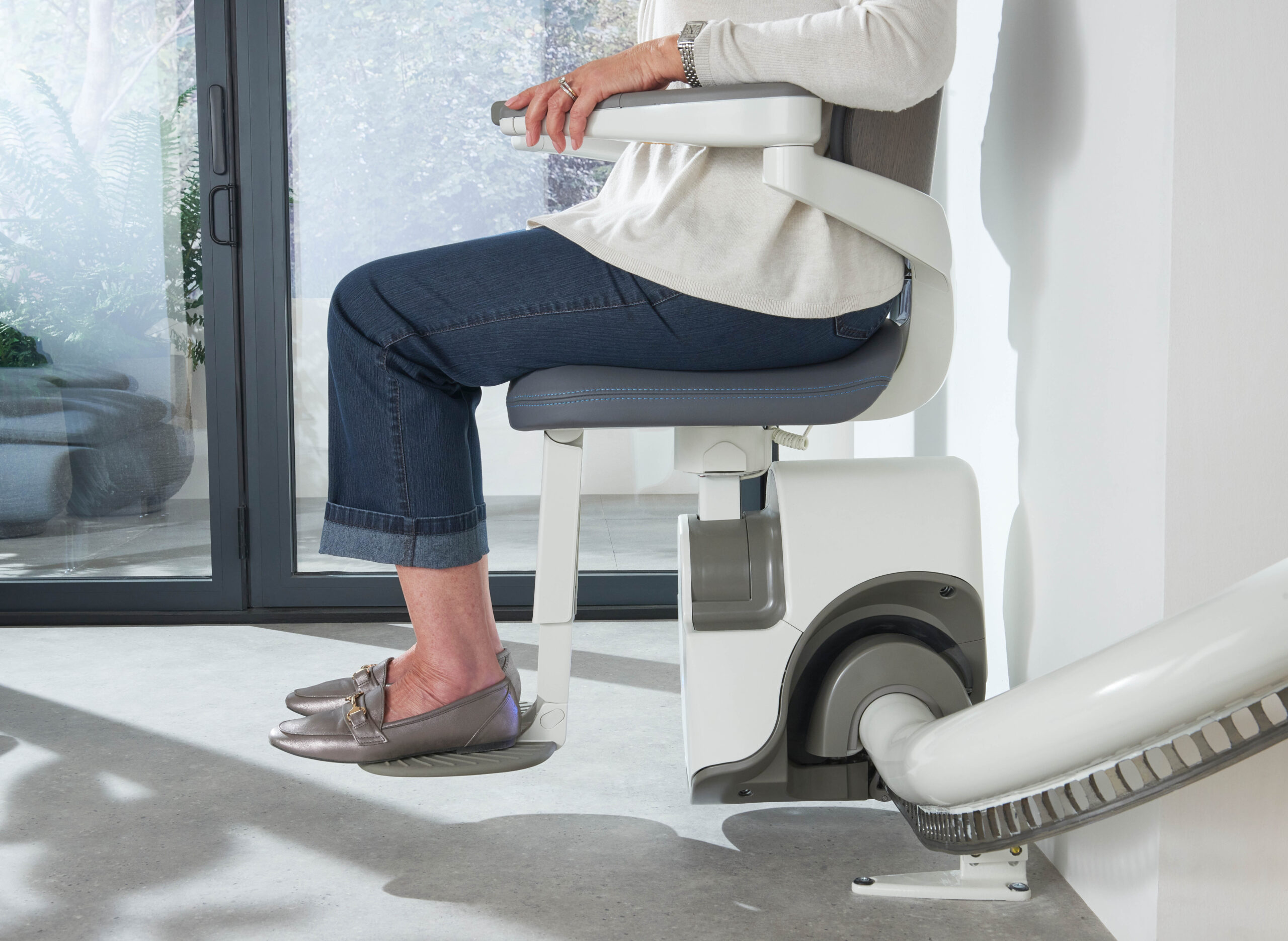

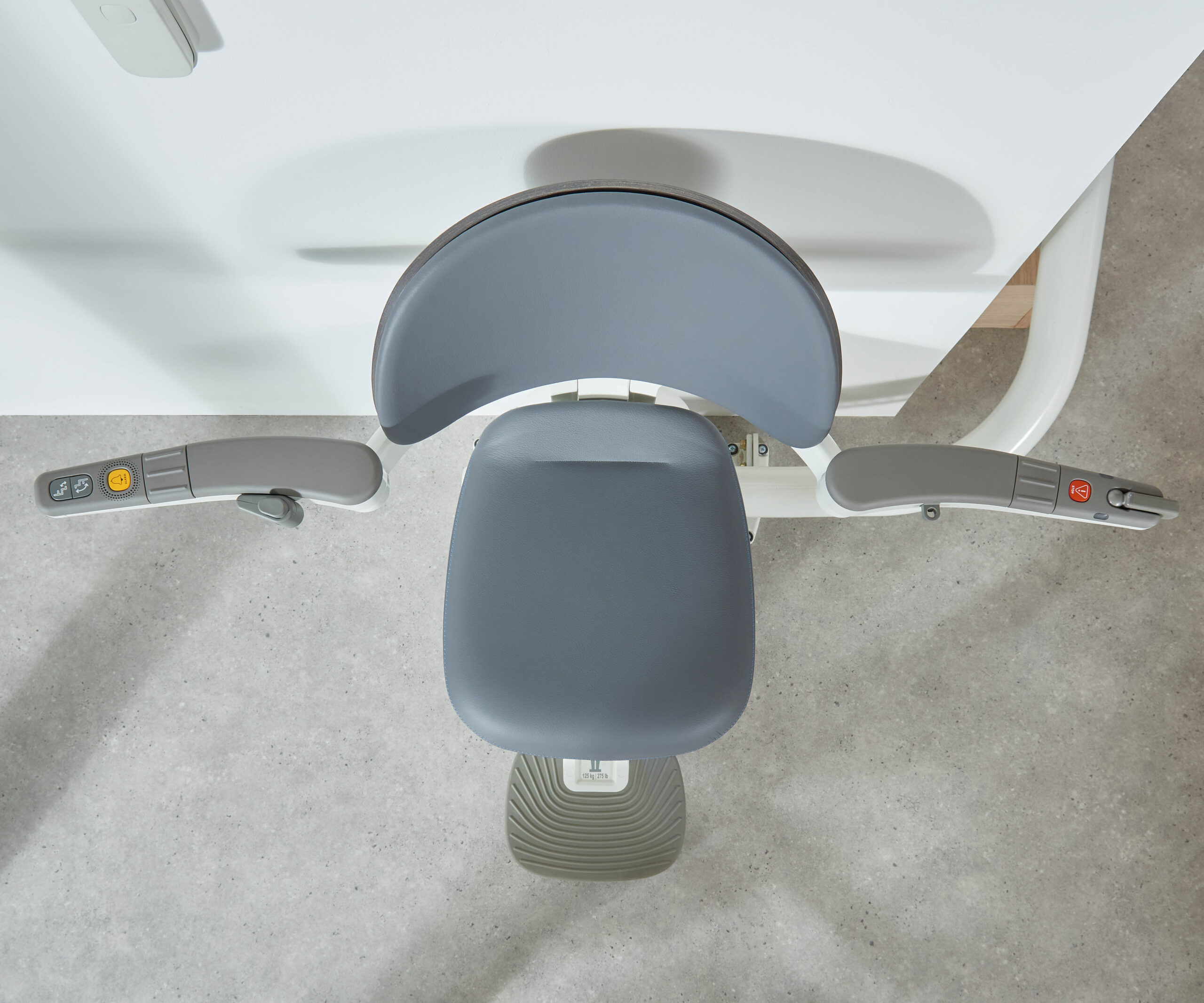

Comfort, Perfected
The Flow X is built around you. An ergonomic seat that adjusts to your height, a reclined backrest for full support, and armrests designed for easy transfers—all crafted for ultimate comfort. This is more than a stairlift—it’s personal.

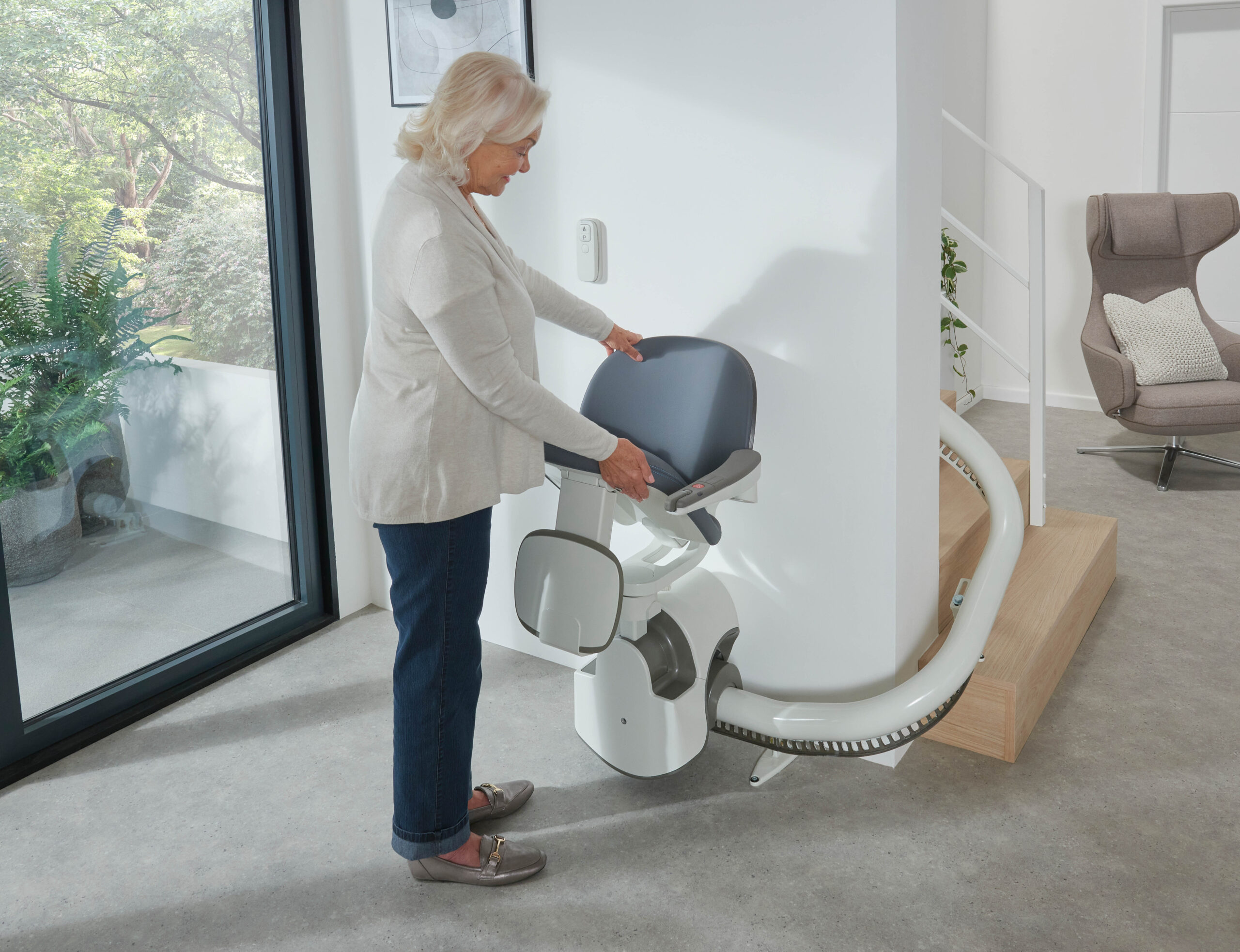

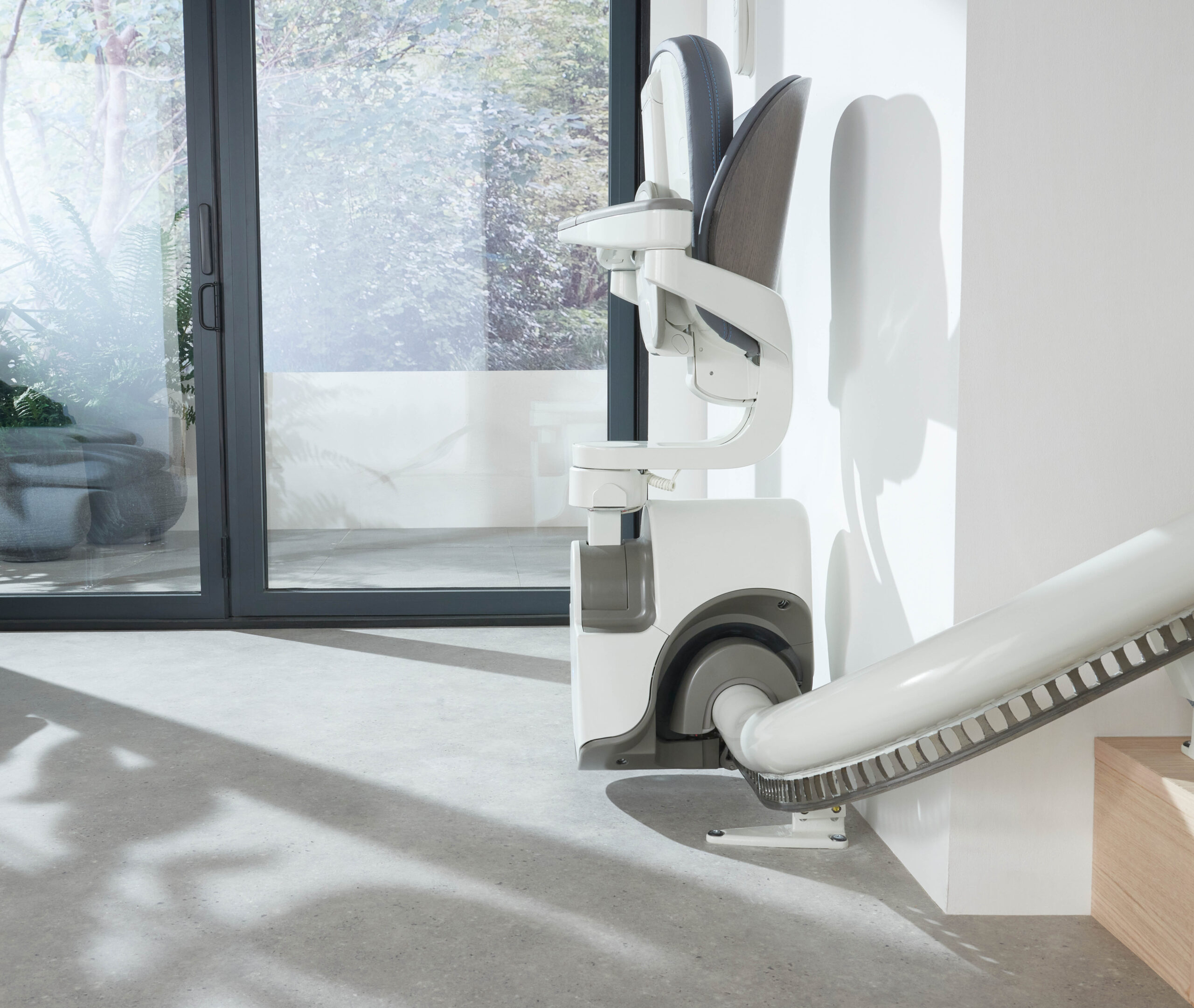

Designed to Disappear
When not in use, the Flow X folds neatly and effortlessly, disappearing into the background. It’s a design that integrates seamlessly into your home, complementing your space instead of crowding it. Choose from a range of finishes to make it your own.
Safety Without Compromise
Safety isn’t an option—it’s a guarantee. With 275 lbs weight capacity, a full range of sensors, and a battery backup for uninterrupted performance, the Flow X is as reliable as it is elegant. Feel confident, every time.
Intuitive by Nature

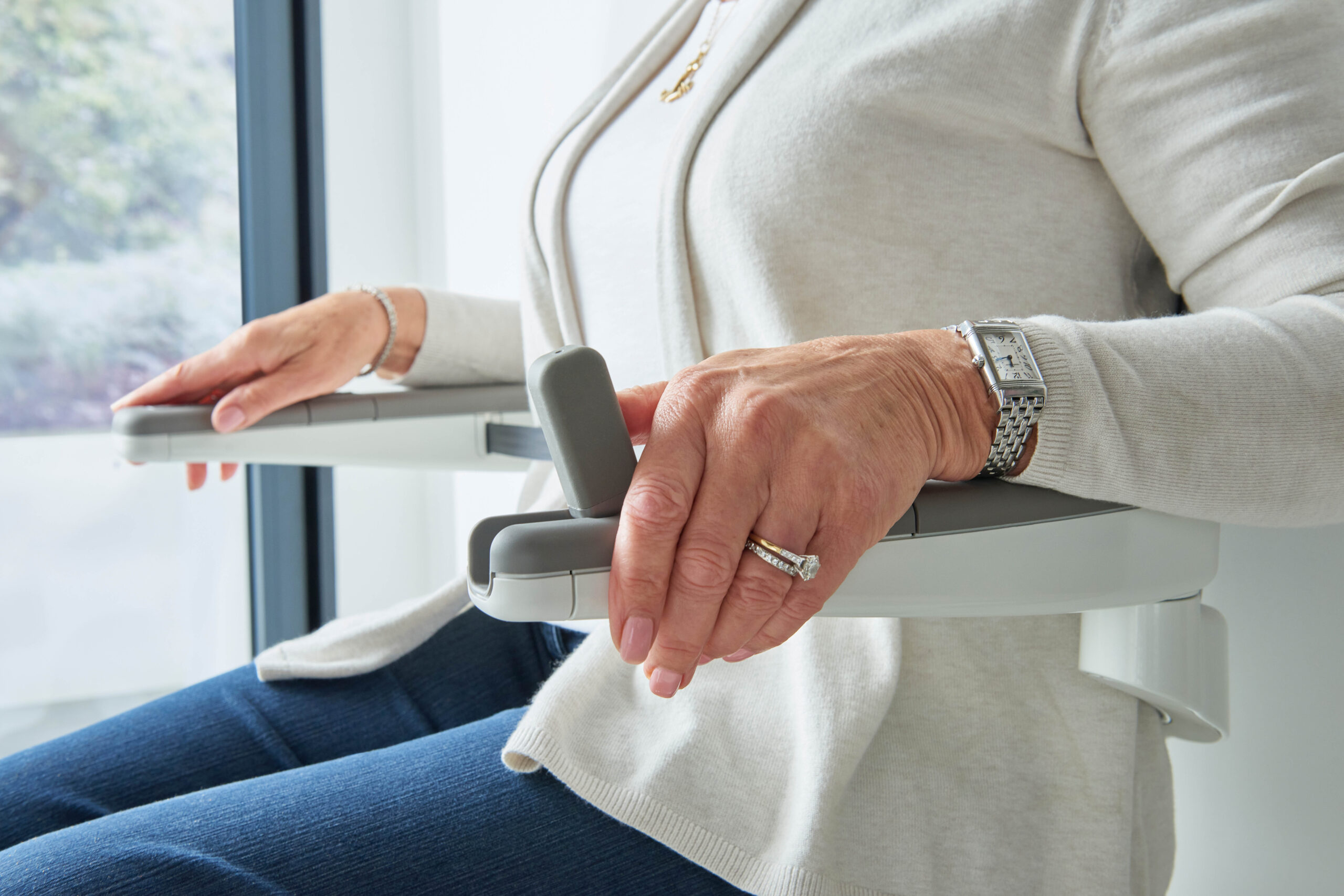

The joystick control is simple, precise, and intuitive—just point and go. No learning curve, just immediate ease of use. With visual indicators for status and operation, you’re always in control.

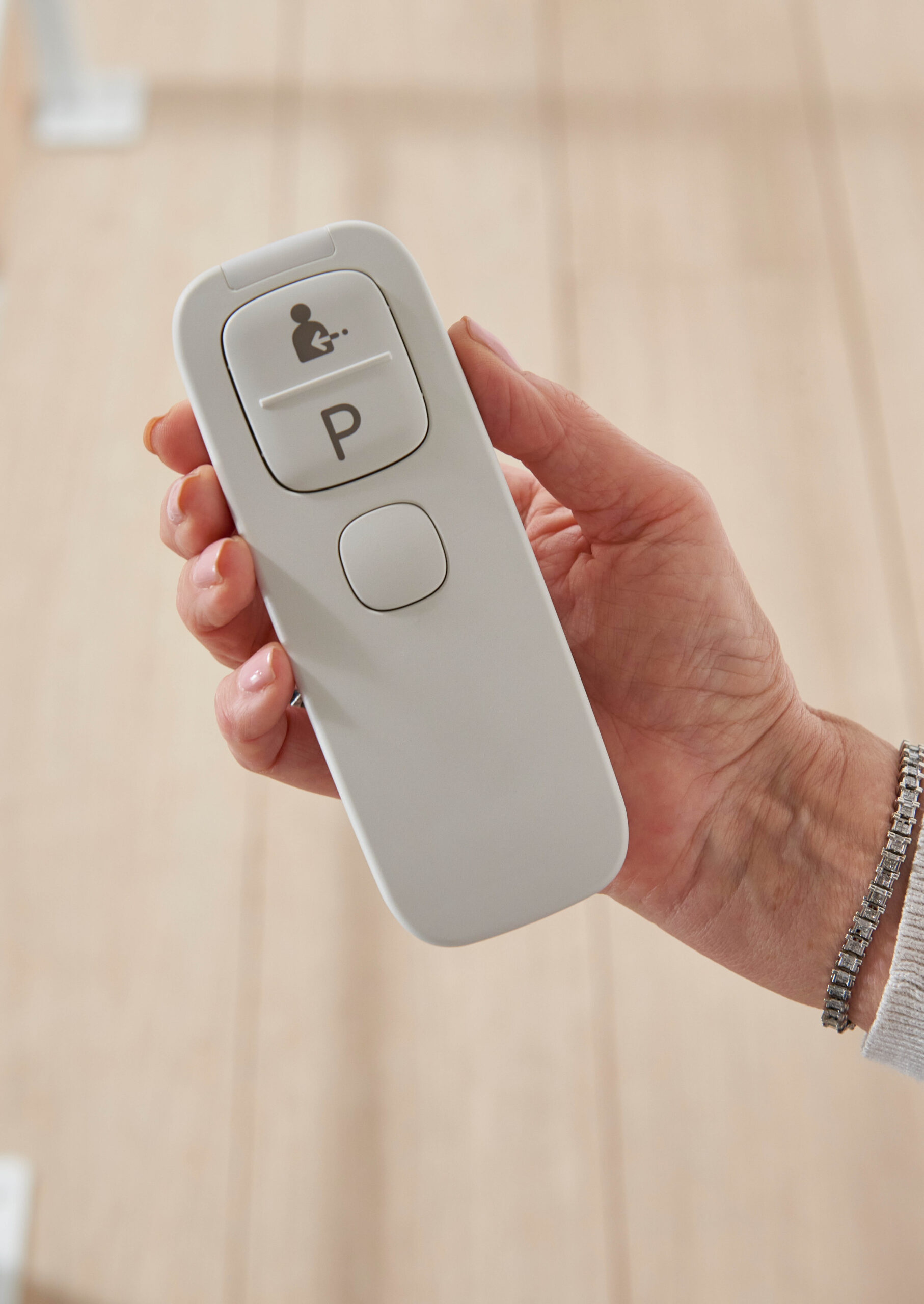

Call Device

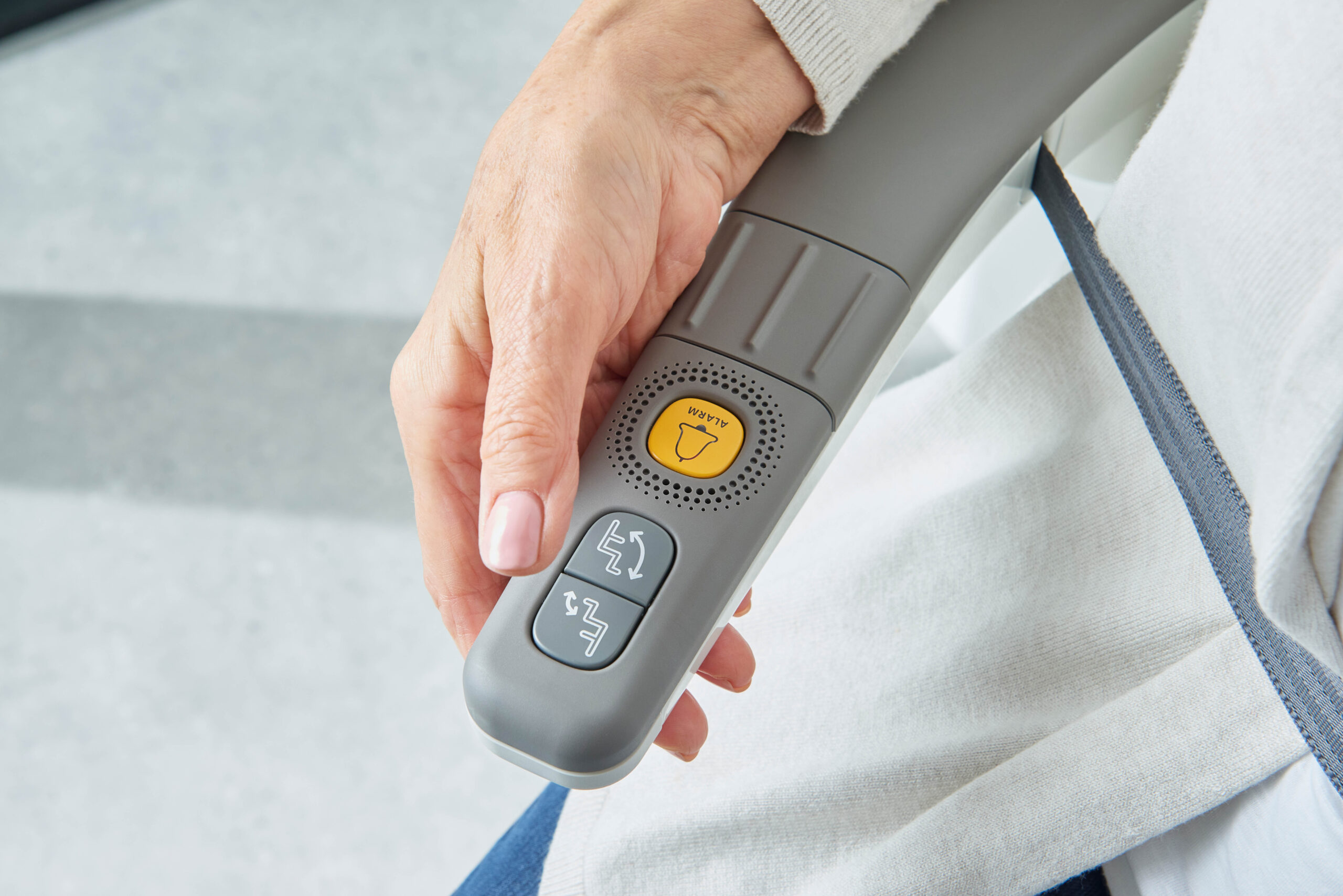

Joystick
Seatbelt
ASL Technology
Ergonomic Armrests
Single-Rail Design

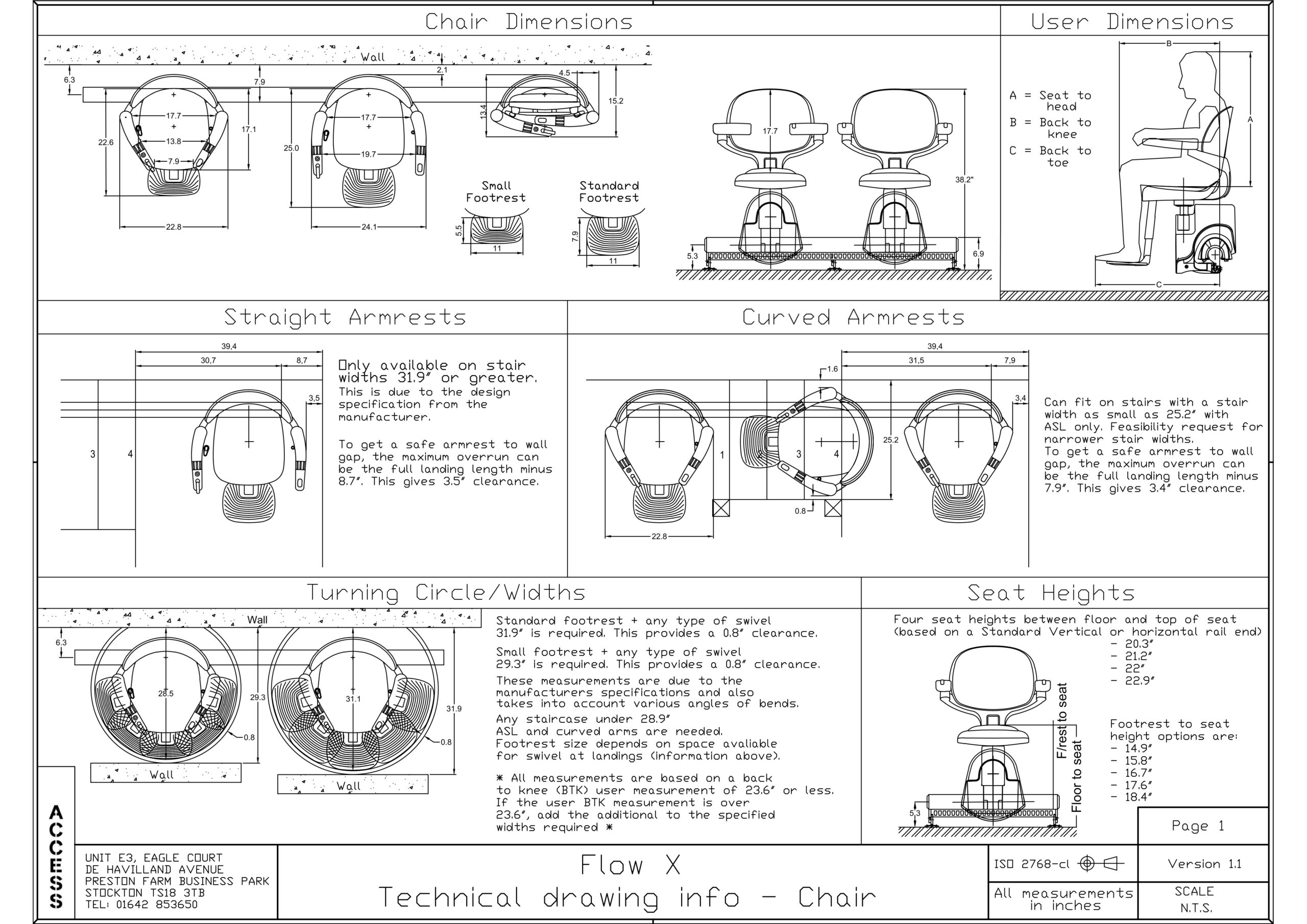

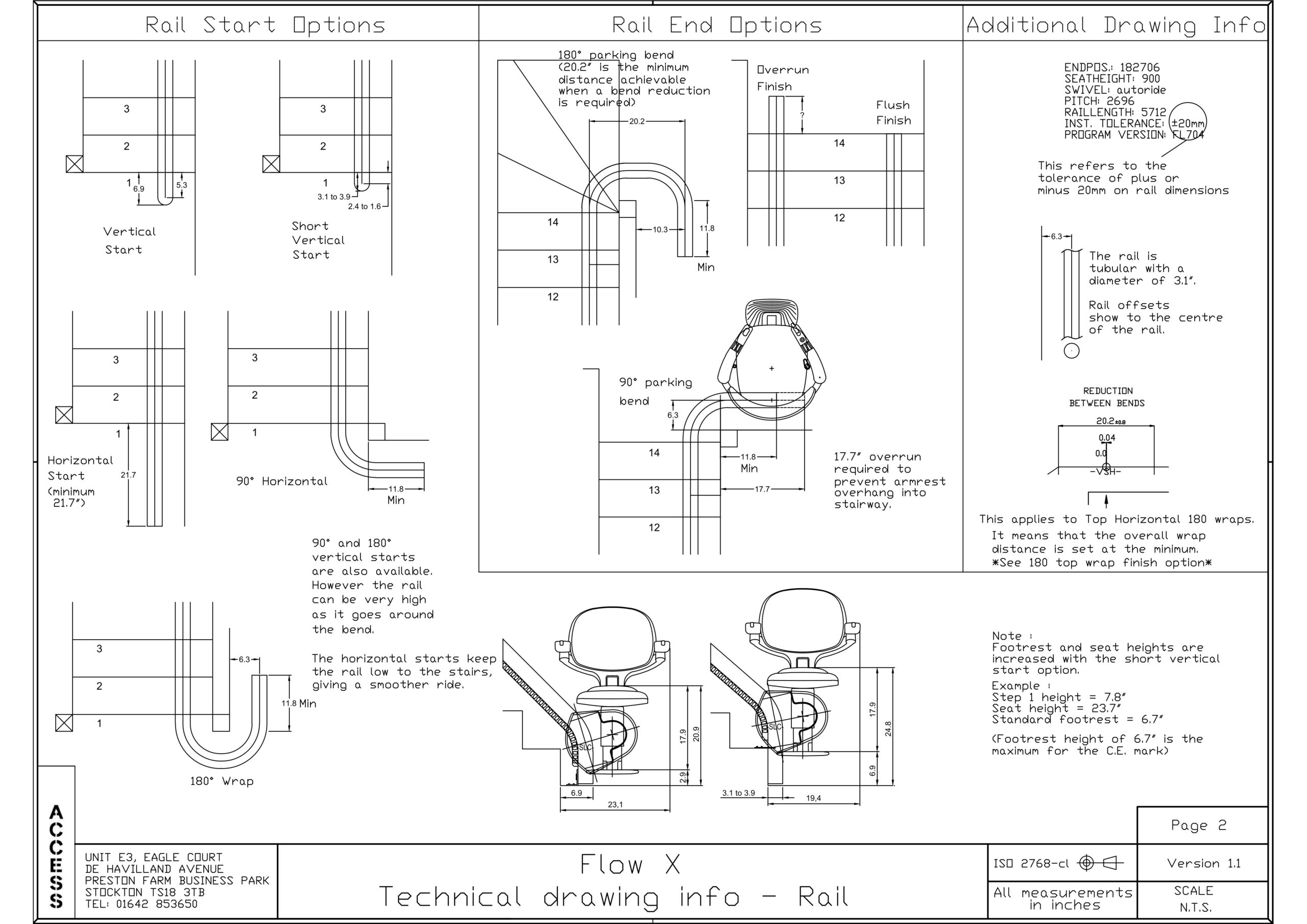

Flow X Technical Information
The Flow X is precision-engineered with advanced technology, delivering a seamless and secure user experience. Equipped with Advanced Swivel and Leveling (ASL) technology, the Flow X maintains a perfectly level ride, even on staircases as narrow as 24 inches. Powered by two reliable 12V batteries, it provides up to 10 trips between charges, while the robust drive system, featuring both a drive motor and a leveling motor, ensures smooth operation. For enhanced safety, the Flow X includes multiple protective systems, such as a brake, overspeed detection, and a safety level sensor. Additionally, an optional communication module allows users to answer calls or request assistance directly from the stairlift.
Technical FAQ About Flow X Stairlifts
The Flow X has a maximum weight capacity of 125 kg (275 lbs), providing robust support for various users.
The Flow X is capable of up to 10 trips on a full charge, based on testing conditions of a 125 kg (275 lbs) load, one floor height, a vertical start at the bottom, and a horizontal stop at the top.
It takes approximately 16 hours to fully charge the Flow X batteries.
The Flow X is powered by two 12V batteries (24V total). The batteries are recharged via a switched-mode power supply that connects to a standard 100-240 VAC outlet.

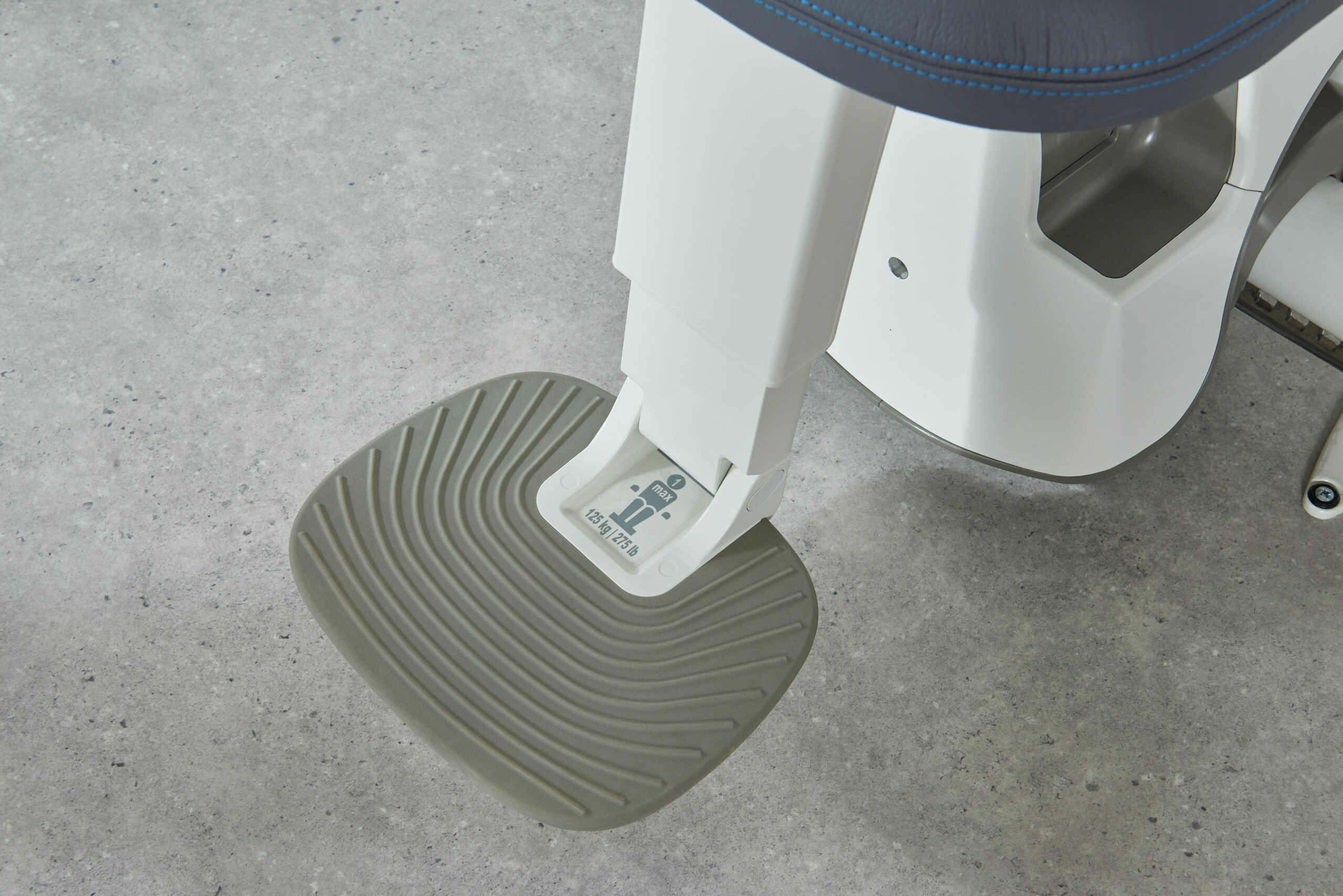

ASL (Advanced Swivel and Leveling) technology ensures the Flow X remains level throughout its journey, allowing the seat to rotate during movement. This enables safe operation on narrow staircases. The footrest swivels in sync with the seat, ensuring the user’s legs stay aligned to reduce strain.
The Flow X is equipped with multiple safety mechanisms:
- Electrically Operated Brake: Engages automatically if power to the drive motor is interrupted.
- Overspeed Device (OSD): A mechanically locking brake that activates if the lift exceeds its safe operating speed.
- Safety Level Sensor Board: Monitors the horizontal position of the chair. If there is a significant deviation, it triggers an emergency stop.
- Squeeze Protection: Halts the lift if the swivel angle exceeds the set parameters.
- Motor Current and Voltage Monitoring: Constantly monitors motor conditions, shutting down the motor and engaging the brake if abnormal current or voltage is detected.
Yes, the Flow X is designed to operate on staircases as narrow as 610 mm (24 inches) thanks to its ASL technology.

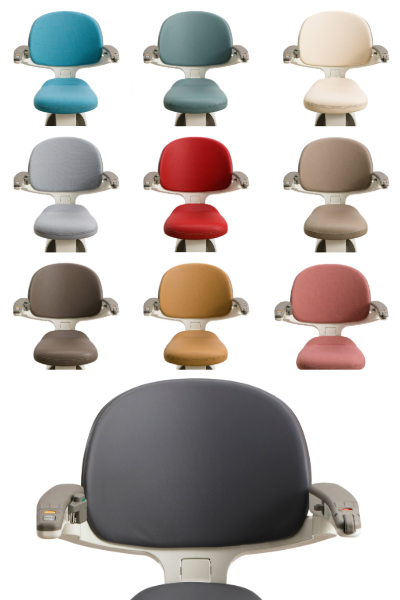

The Flow X offers various customization options to suit different interior styles:
- Rail Colors: Stone Grey, White, Pale Brown, Dark Brown
- Upholstery:
- Colors: Natural Beige, Mountain Grey, Firenze Smoke, Basalt Grey, Mineral Blue, Firenze Tan, Pearl Blue, Coral Orange, Firenze Grey, Deep Red
- Materials: Vinyl, Leather, Fabric, Wood
Yes, an optional communication module allows the Flow X to store up to three phone numbers, providing the user with the ability to make calls or request assistance directly from the stairlift.
It is recommended that the Flow X be serviced once or twice annually to ensure optimal operation and to address any potential wear or issues.
Additional information
| Model | Flow X Custom Stairlift |
|---|
