Access BDD Supra Linea Inclined Platform Lift

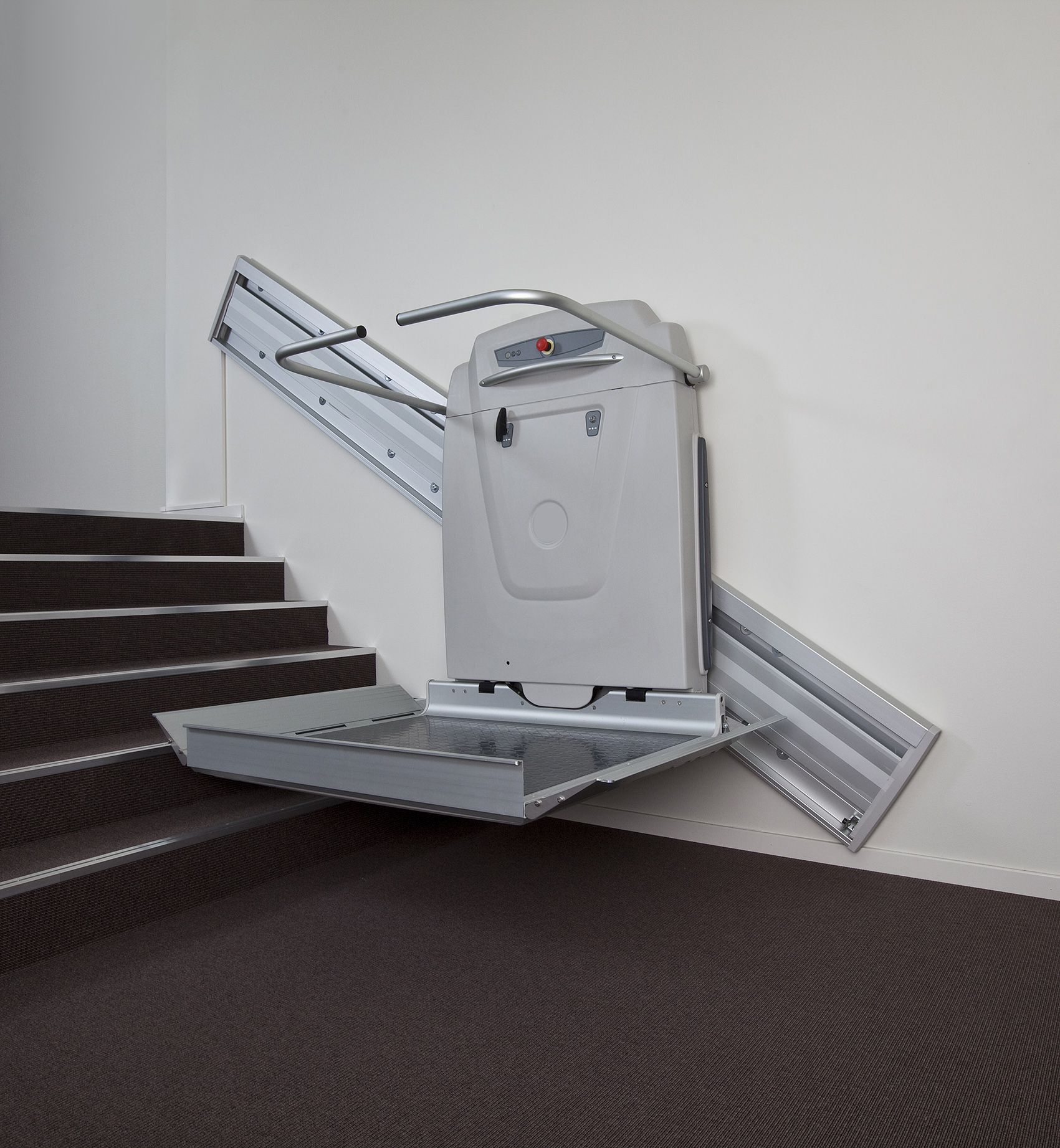

The Access BDD Supra Linea Inclined Platform Lift is engineered to deliver reliable and elegant accessibility solutions for straight staircases with a consistent gradient. Its modern and discreet design seamlessly integrates into both indoor and outdoor environments, including residential, commercial, and public buildings, ensuring accessibility without compromising aesthetics or space.
Key Benefits
- Compact and Discreet:

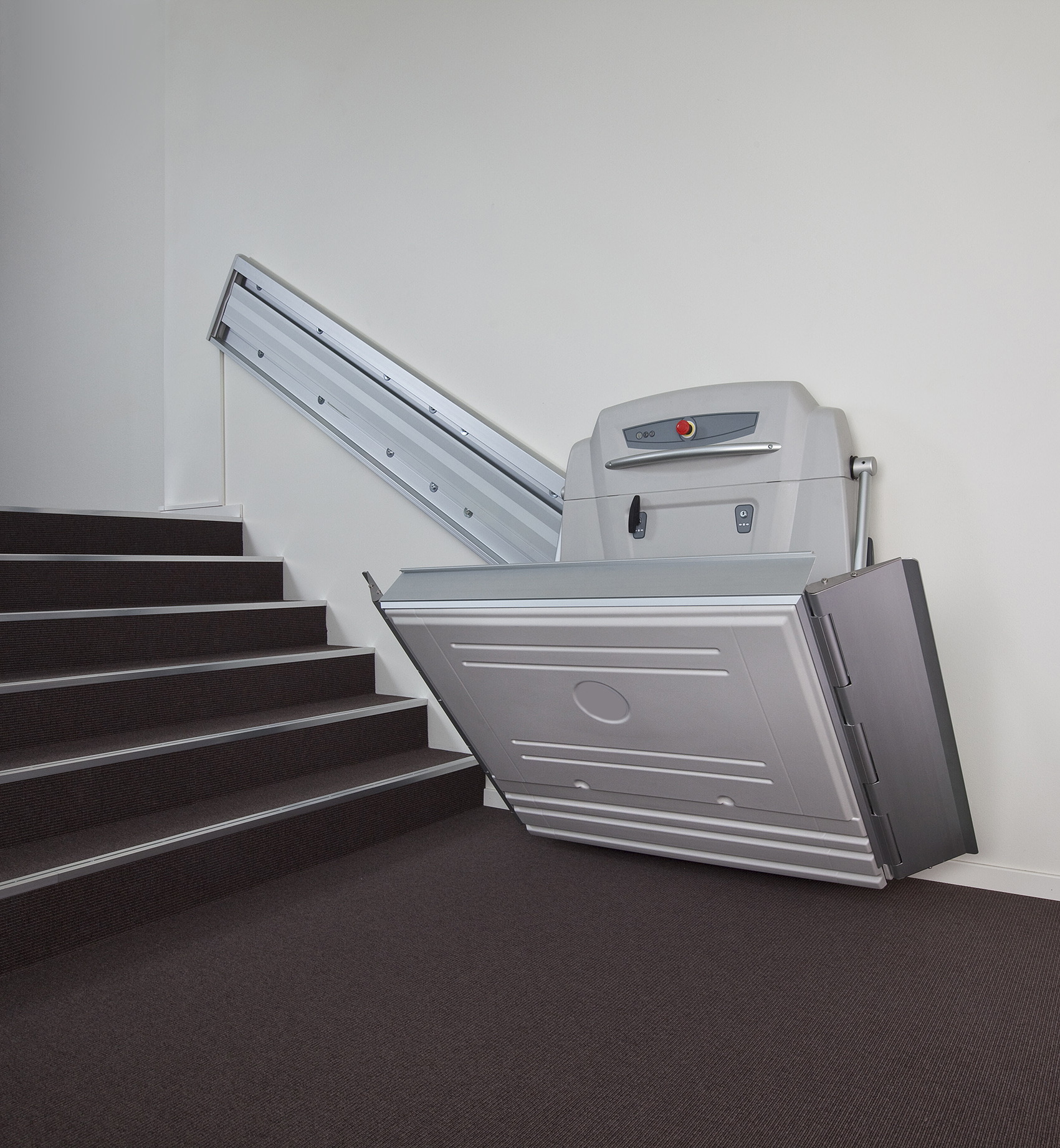

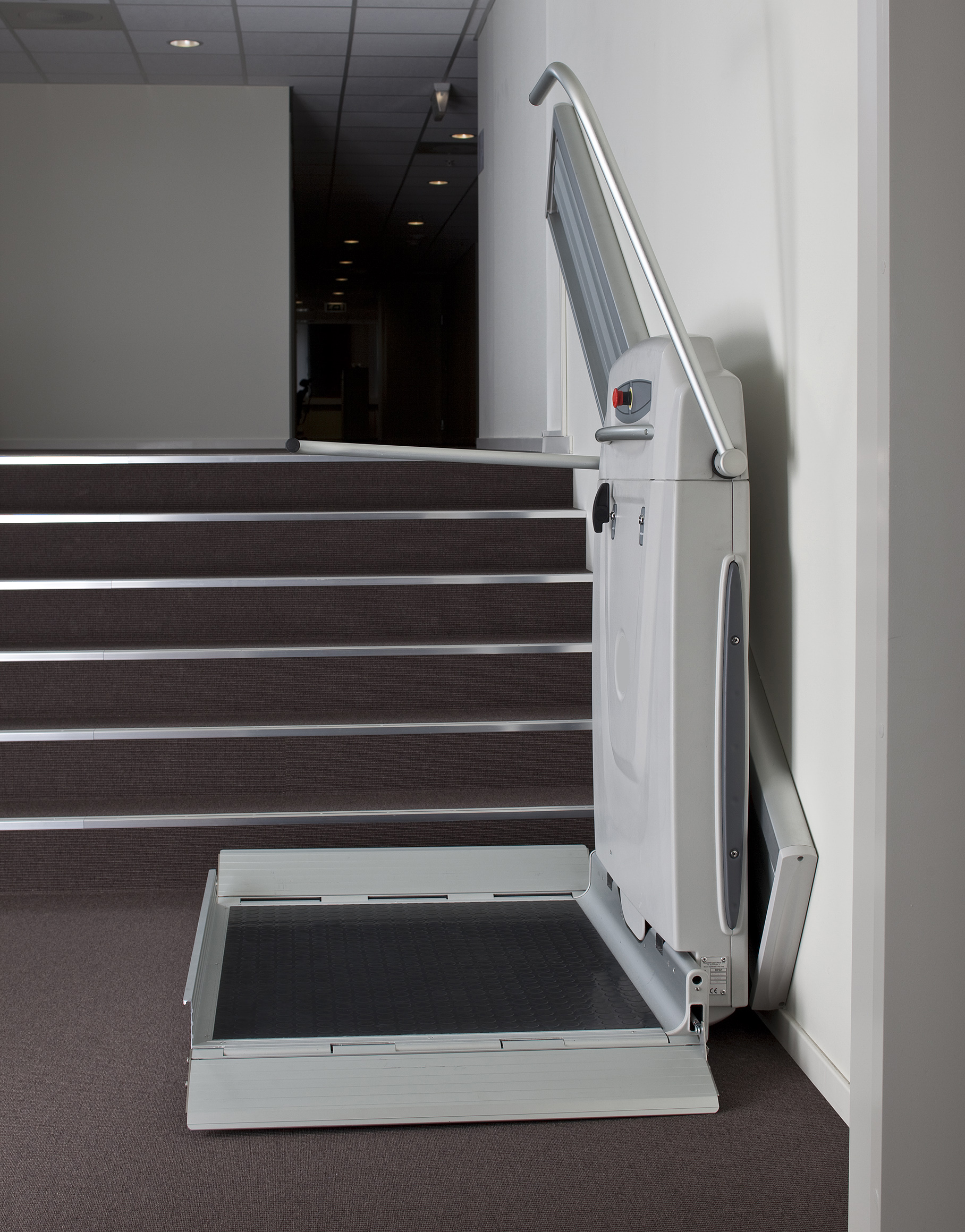

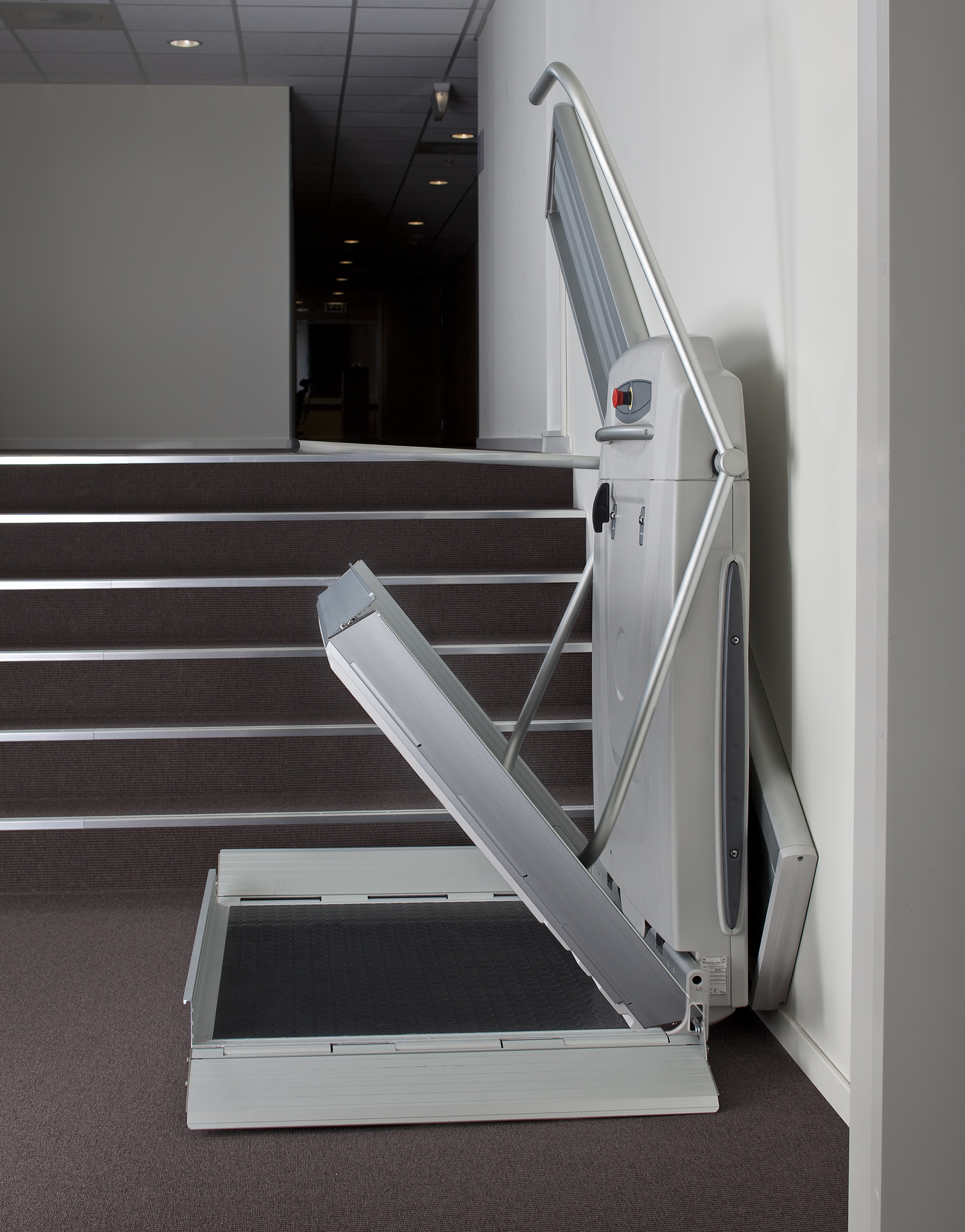

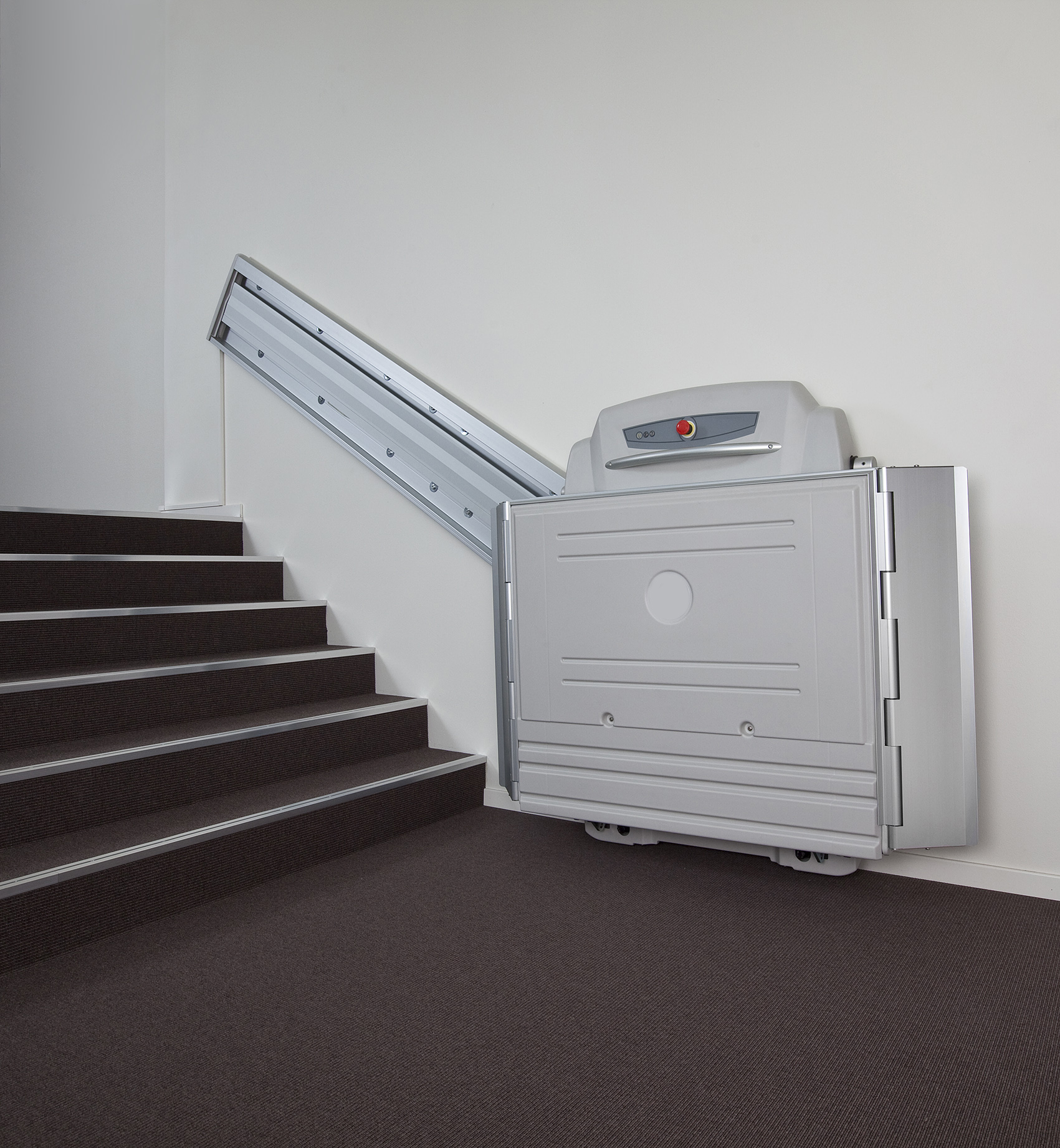

- Slim profile folds neatly, occupying only 14.57 inches when not in use, maintaining staircase accessibility.
- Robust and Durable:
- Crafted entirely from anodized aluminum for superior resistance to corrosion, ensuring durability and suitability for outdoor installations.
- Enhanced Safety Features:
- Anti-impact and anti-shearing safety devices halt the lift immediately upon encountering obstructions.
- Automatic safety bars and anti-slip flooring provide secure, stable travel.
- Certified compliant with stringent standards ASME A18.1 and ASME A17.5.
- User-Friendly Operation:

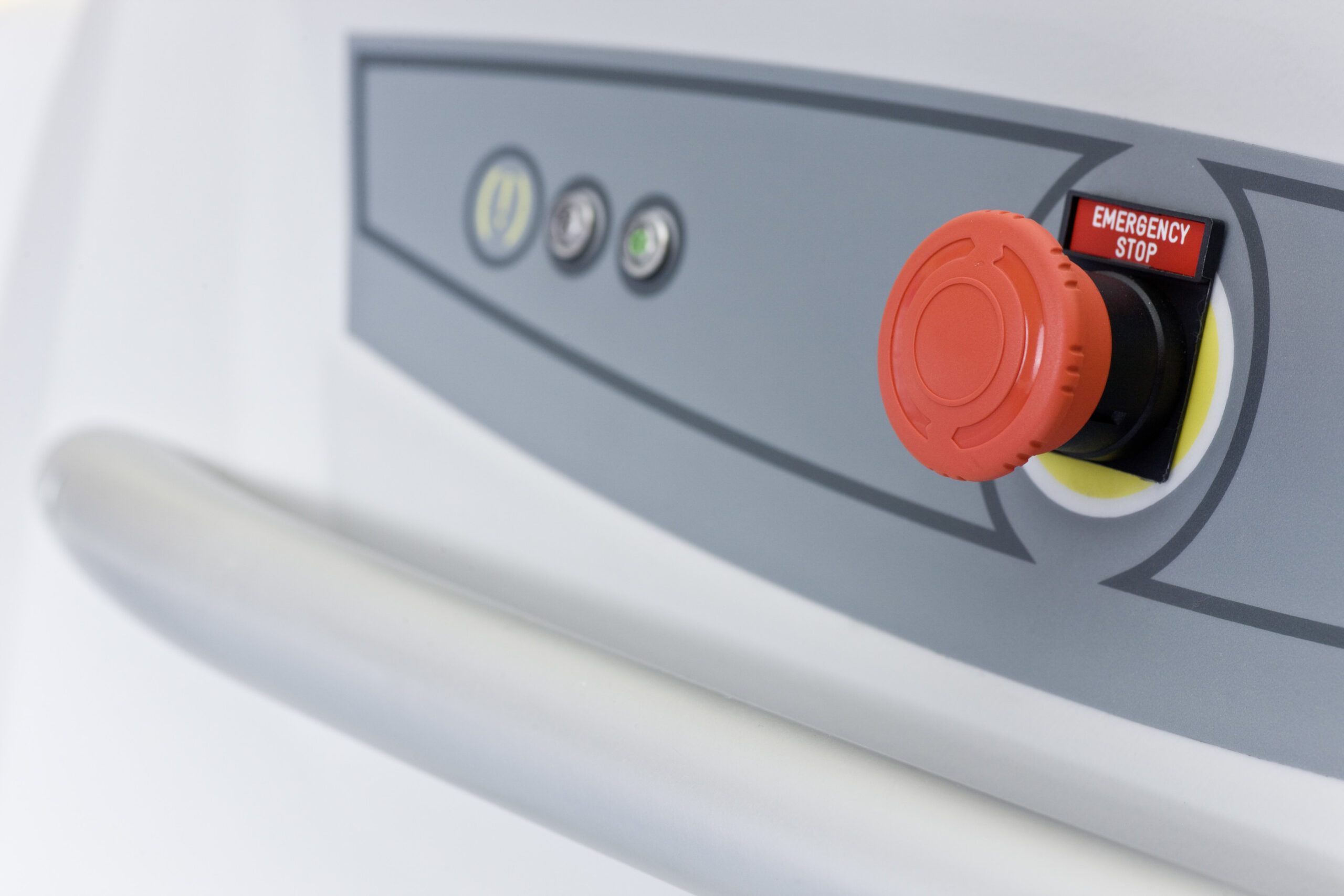

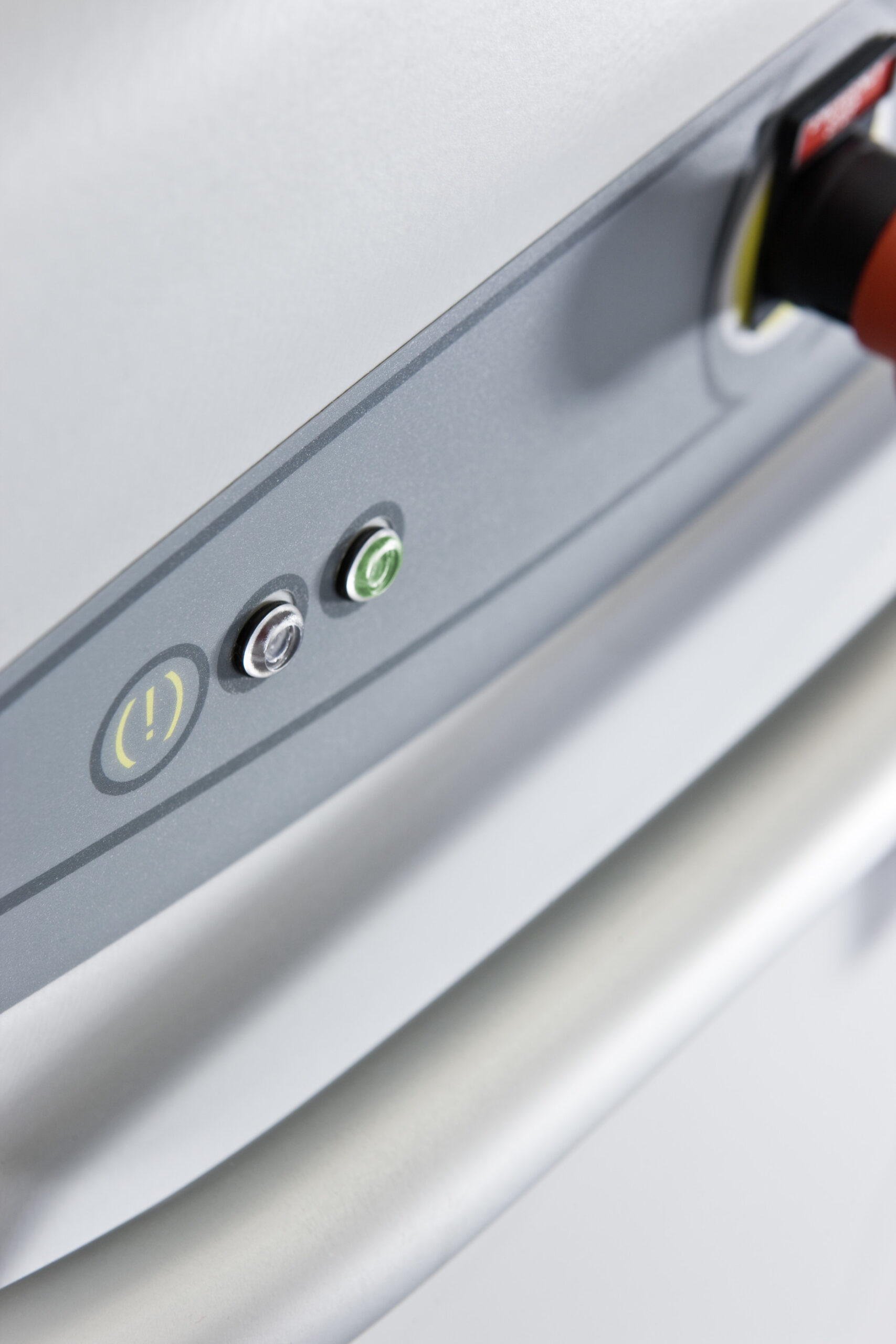

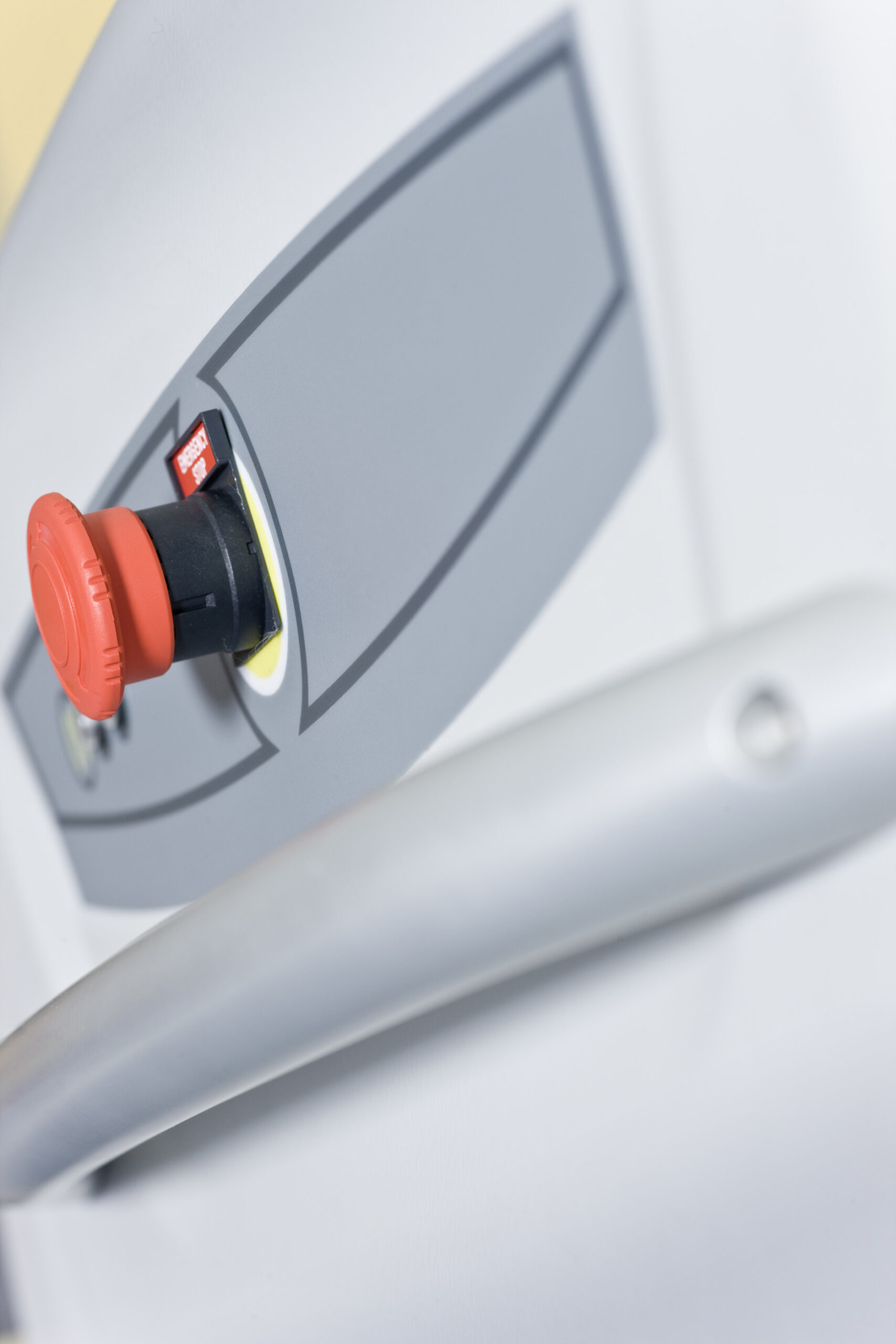

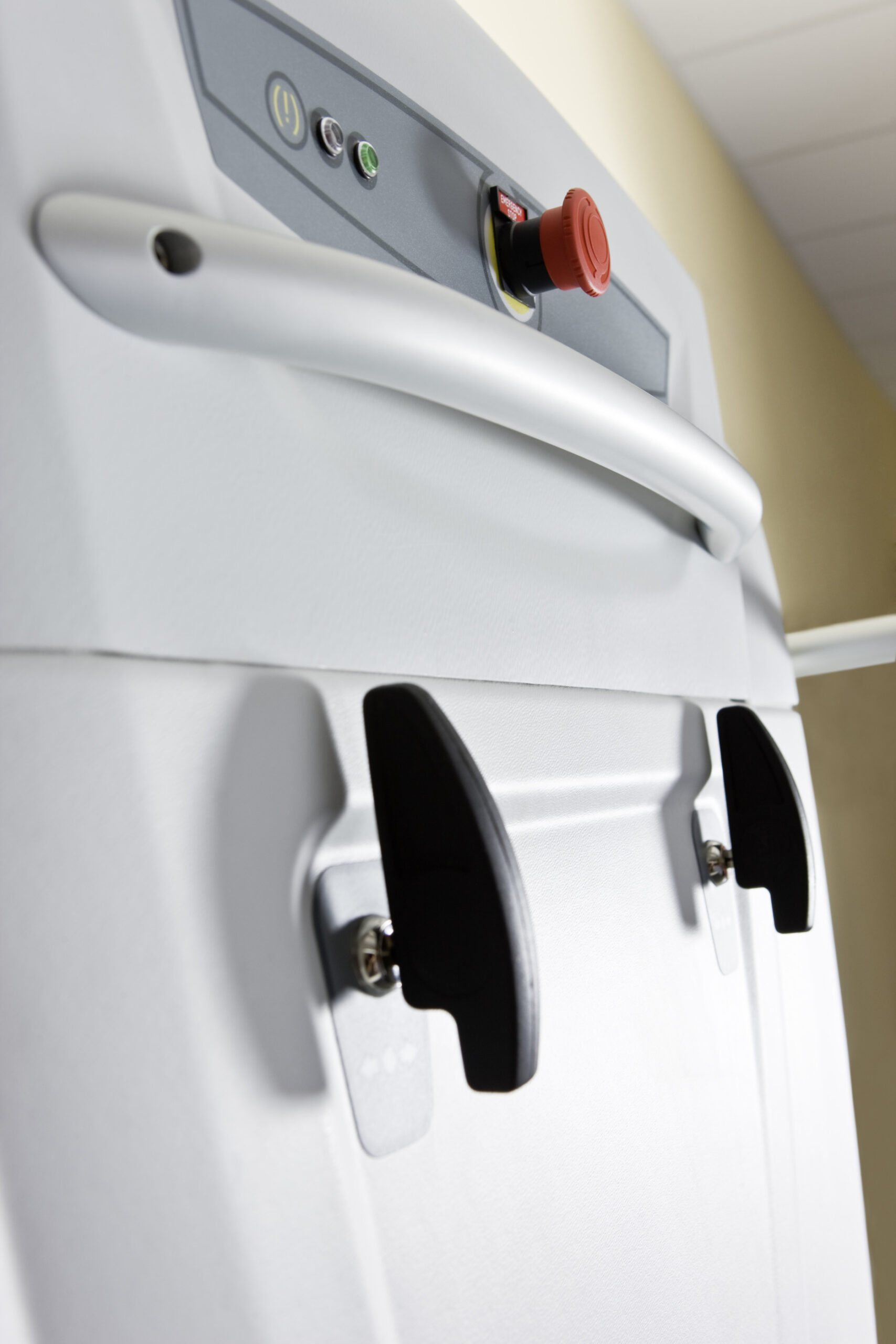

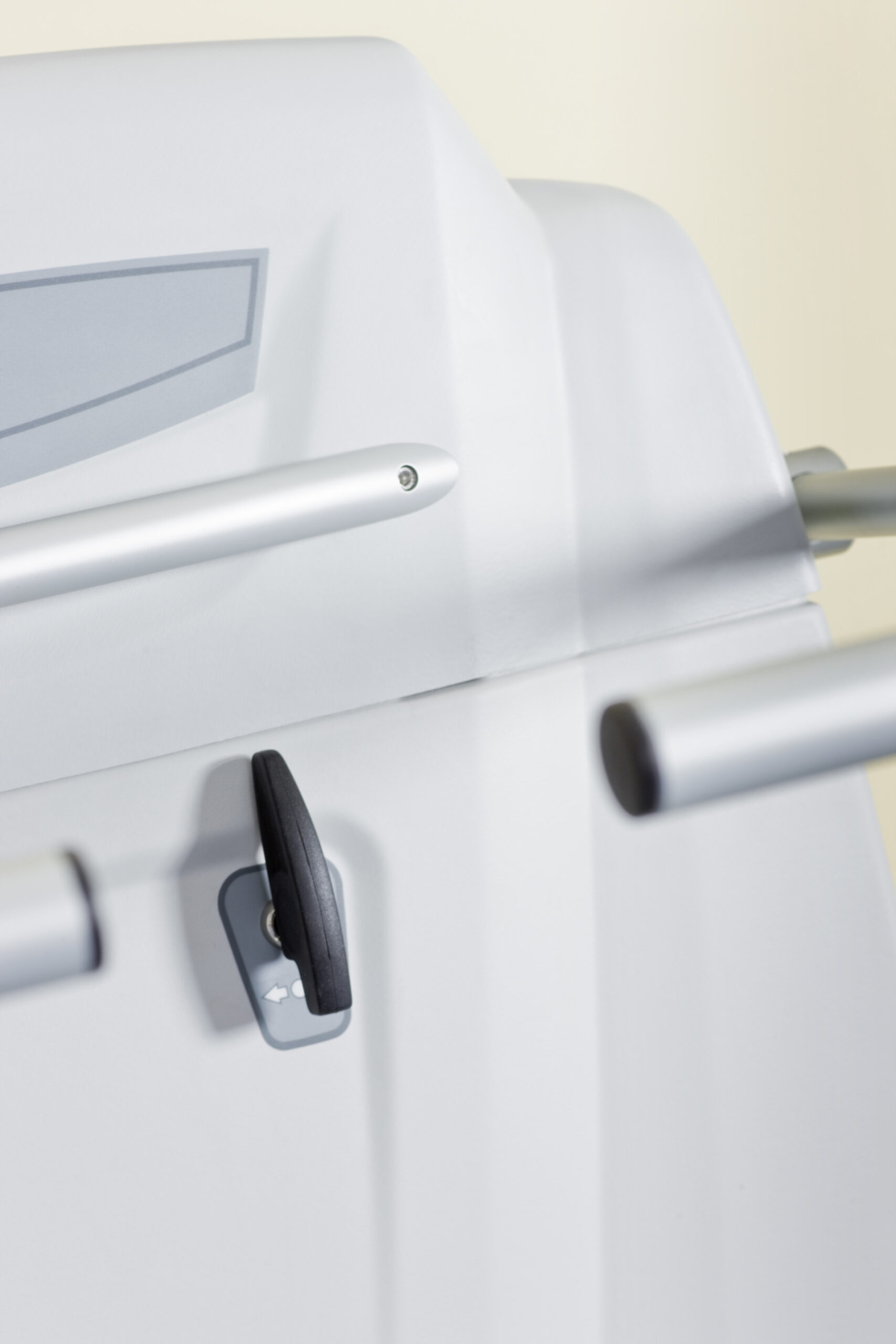

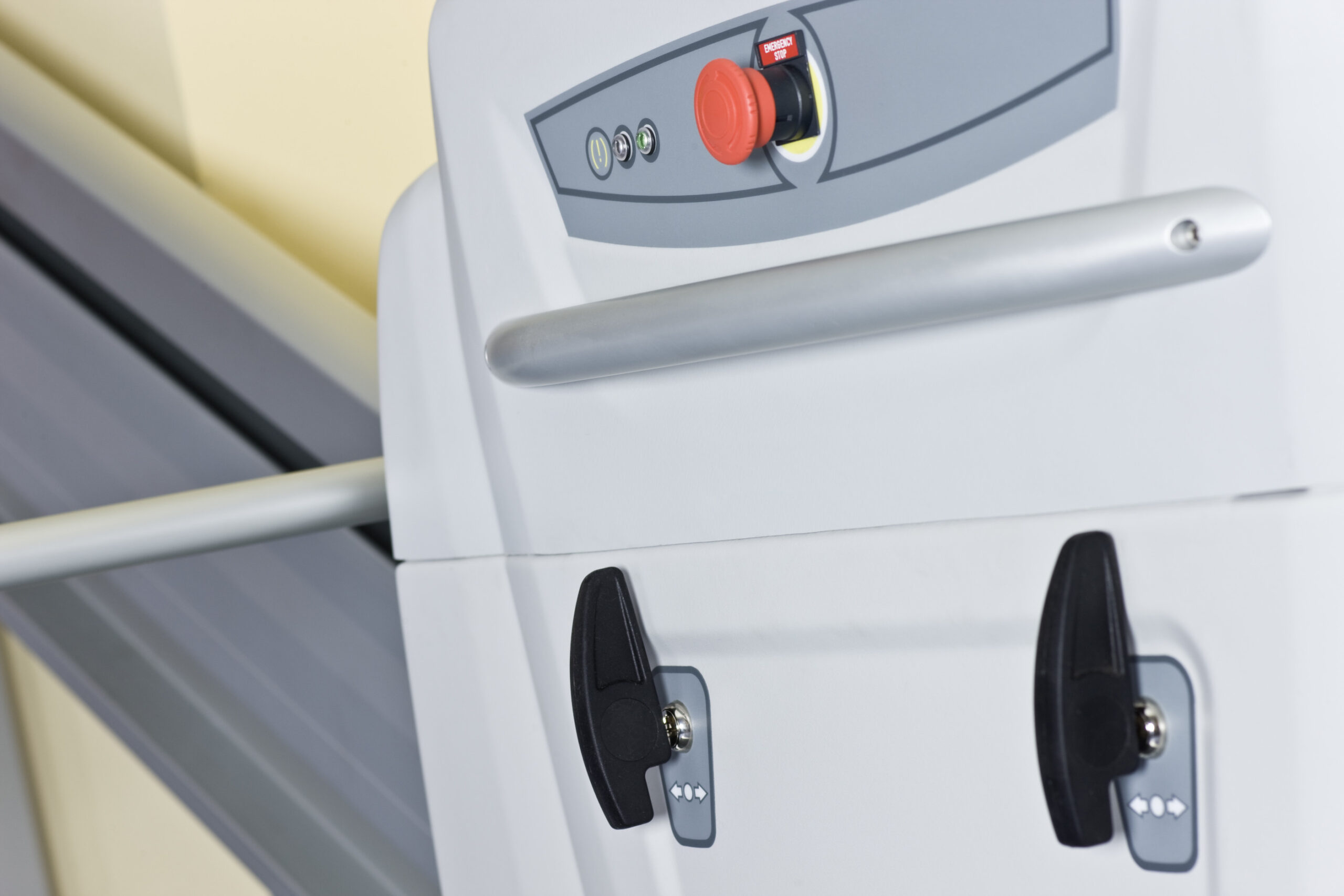

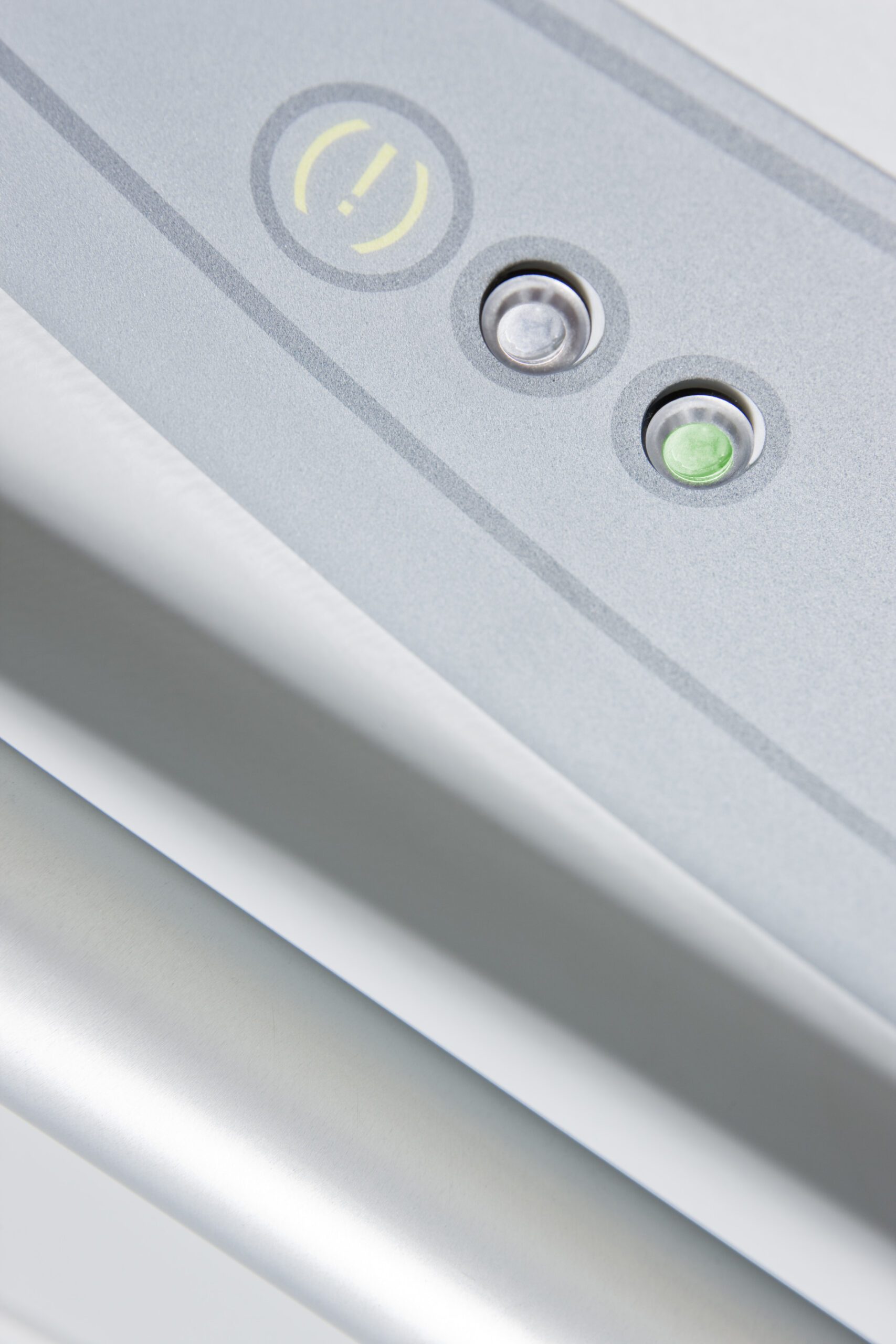

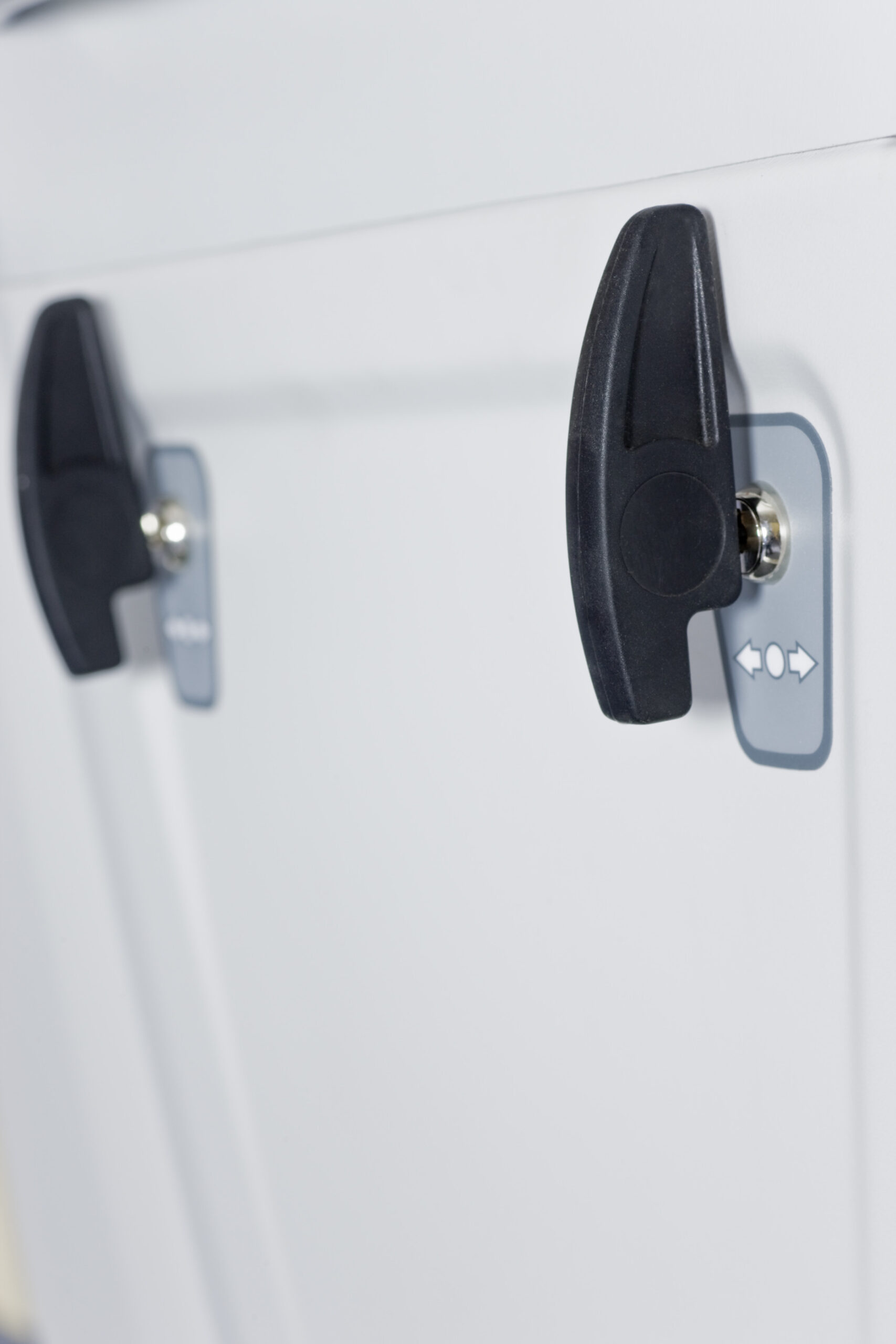

- Ergonomically designed onboard joystick and controls simplify lift operation.

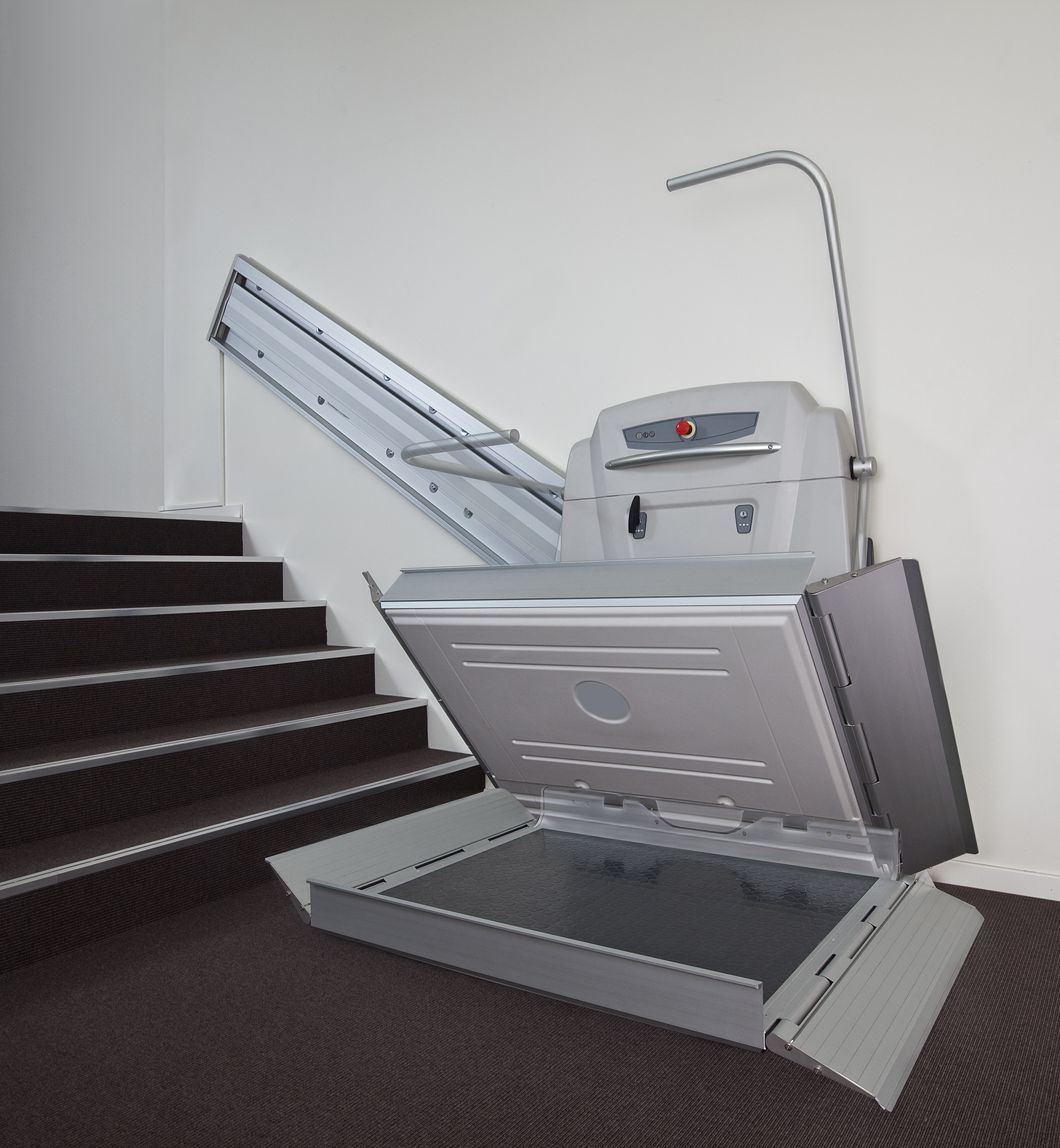

- Automatic access ramps at both landings ease user entry and exit.
Compliance with ADA Requirements
The Supra Linea Inclined Platform Lift meets ADA (Americans with Disabilities Act) accessibility requirements for commercial and public spaces, such as doctor’s offices, churches, museums, schools, and government buildings. Its spacious platform dimensions, robust safety features, and ease of operation ensure reliable and compliant accessibility solutions, promoting equal access and independence for individuals with disabilities.
Technical Specifications
- Motor: 0.75 kW (1 hp)
- Power Supply: 120 VAC, Single Phase, 50/60 Hz

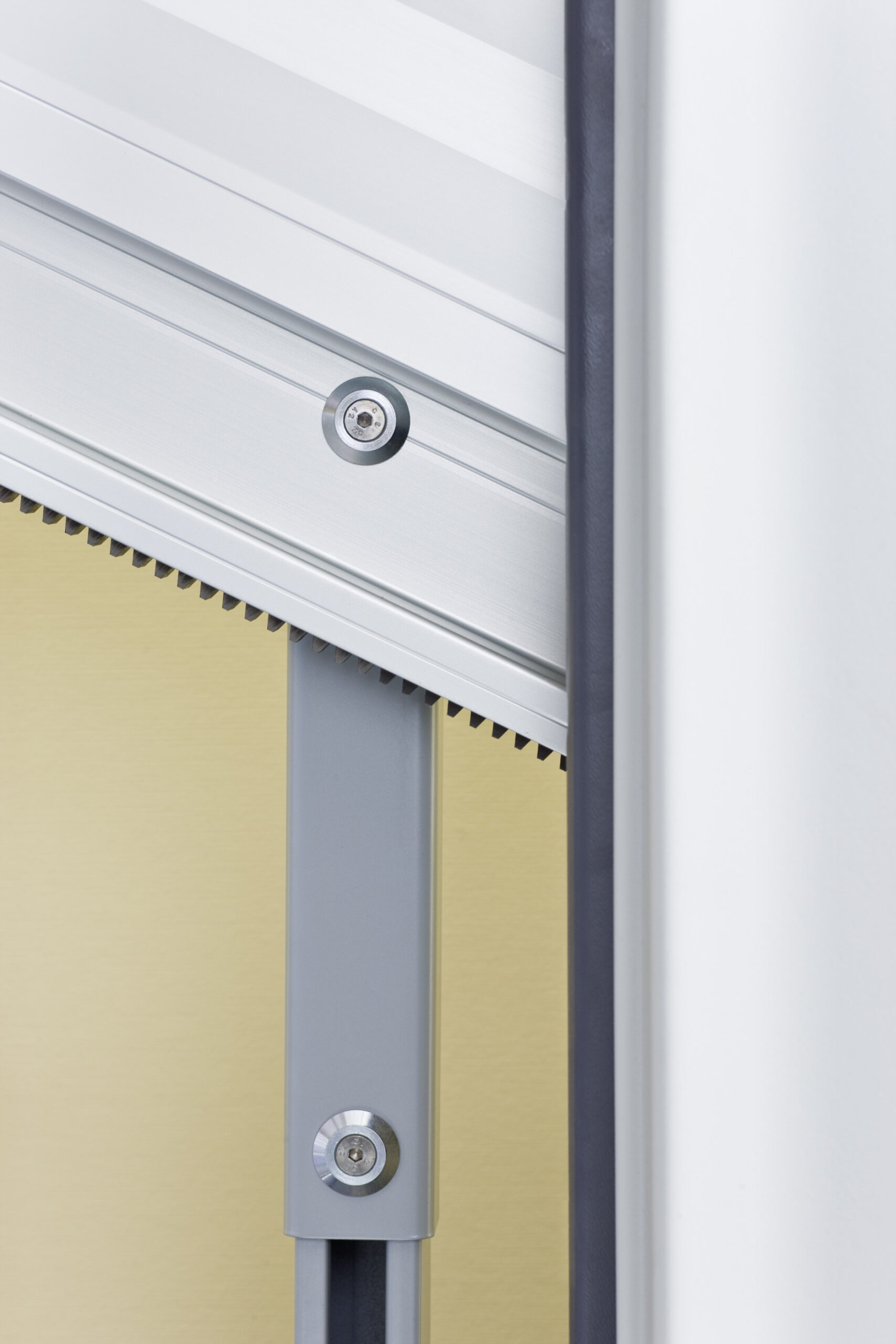

- Drive System: Rack and Pinion
- Rated Load:
- 716 lbs (0° to 35° incline)
- 550 lbs (36° to 45° incline)
- Travel Speed: 25½ ft/min
- Platform Dimensions:
- Residential Standard: 33.5″ x 27.9″
- Residential Optional: 49.2″ x 33.5″
- Commercial (ADA Compliant): 49.2″ x 33.5″

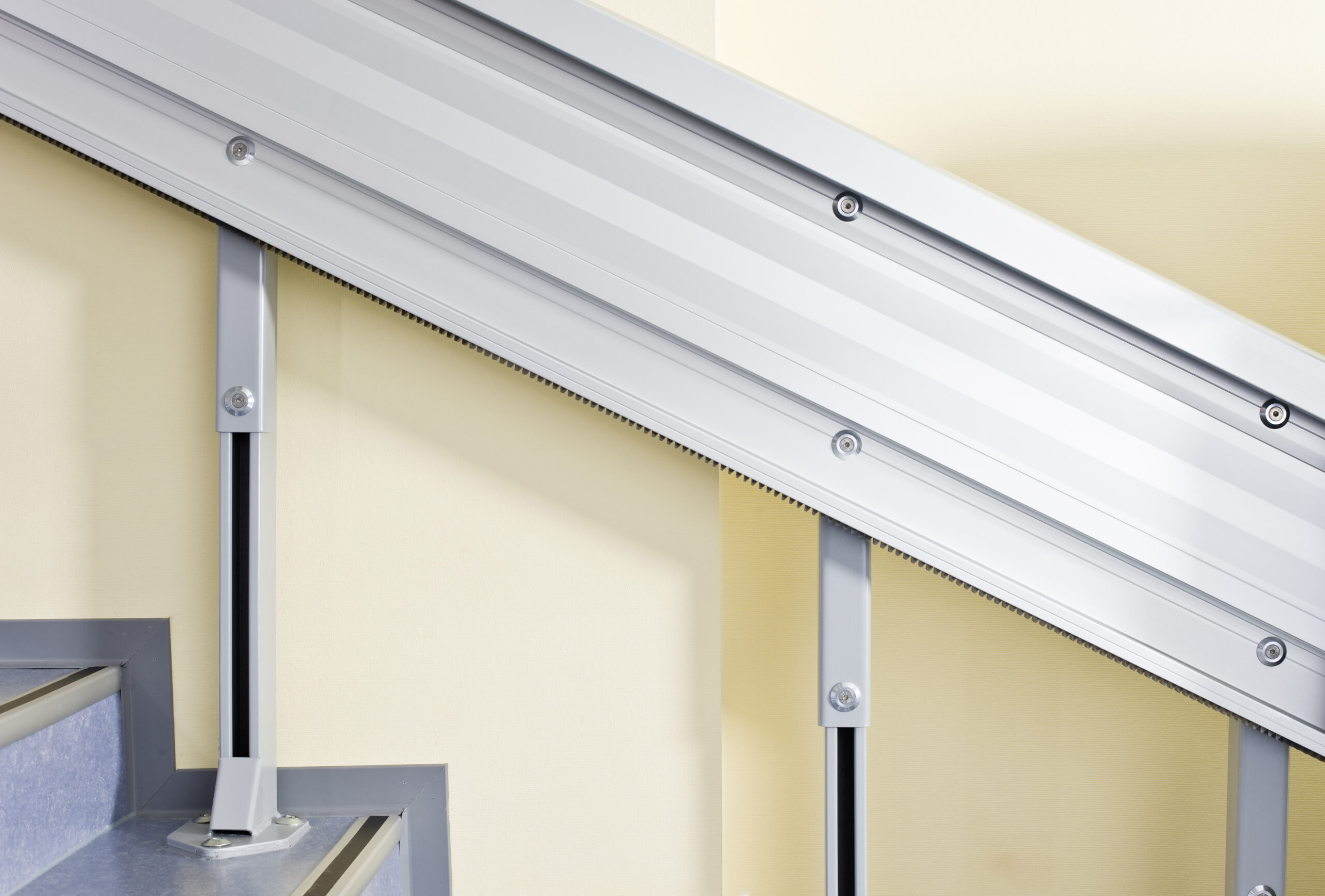

- Rail: Single aluminum rail, max length 65.5 ft
- Lift Weight: 286 lbs (machine body)

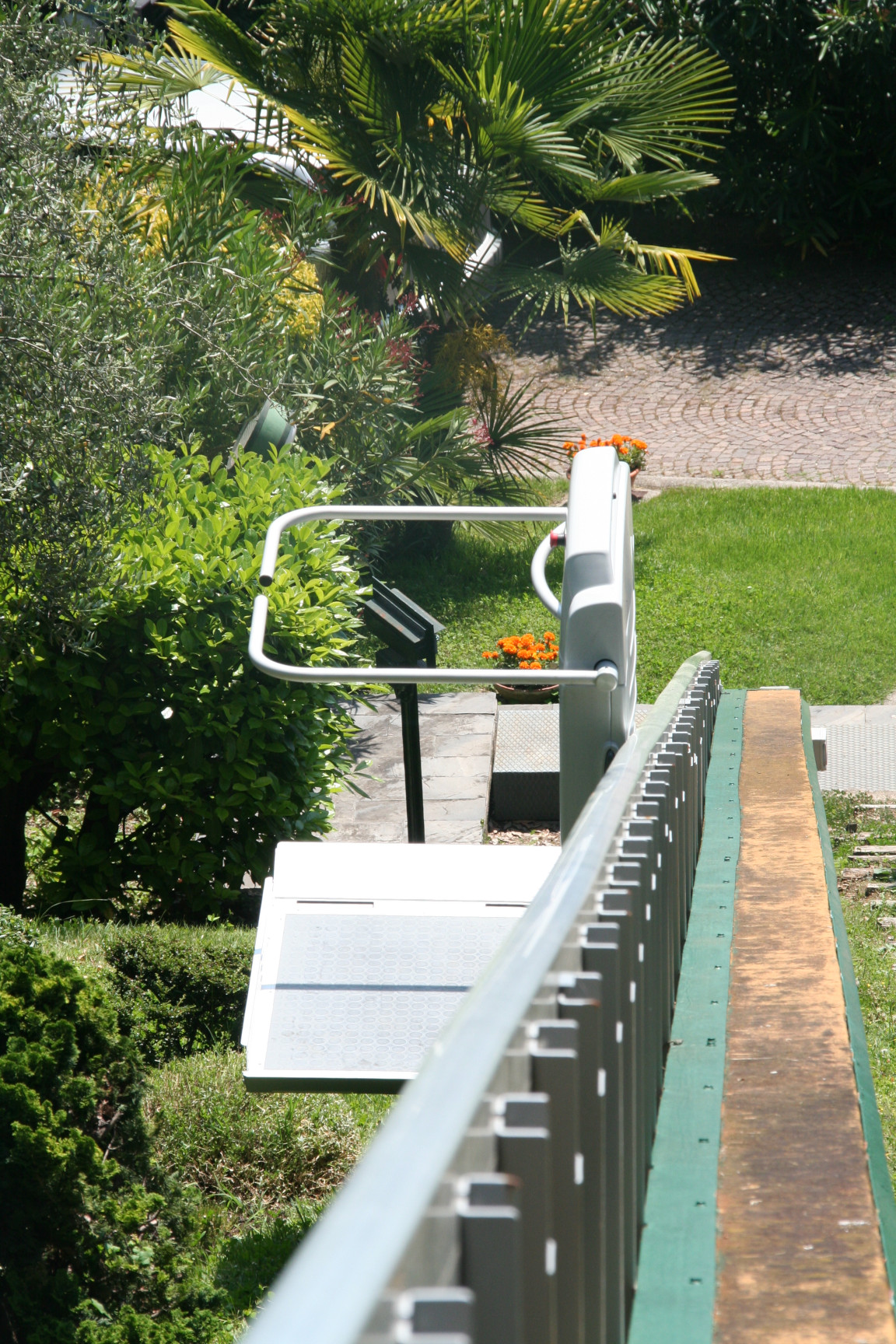

- Outdoor Protection: IP45 rated for outdoor use
Customizable Options
- Folding Seat: Optional for residential; standard for commercial.
- Control Options:
- Onboard joystick (standard residential)
- Wired controls (optional residential, standard commercial)
- Radio remote control for additional convenience
- Emergency Features:
- Optional uninterrupted power supply (UPS) ensures operation during power outages (standard for commercial installations).
- Optional emergency call device (ECD) enhances safety (standard for commercial installations).
- Installation Flexibility:
- Wall-mounted or freestanding call stations for adaptable installations.
- Optional 90° access ramp for space-constrained landings.
- Protective outdoor cover available for added durability.
Versatile Application
Perfect for homes, offices, restaurants, schools, and public spaces, the Supra Linea platform lift delivers robust functionality while upholding aesthetic appeal and usability, promoting barrier-free accessibility for all users.
For superior comfort, quality, and safety, choose the Supra Linea Inclined Platform Lift—where accessibility meets elegant design.
IPL Frequently Asked Questions (FAQ)
The Supra Linea has a maximum weight capacity of 716 lbs for stair inclines between 0° and 35°, and 550 lbs for inclines between 36° and 45°.

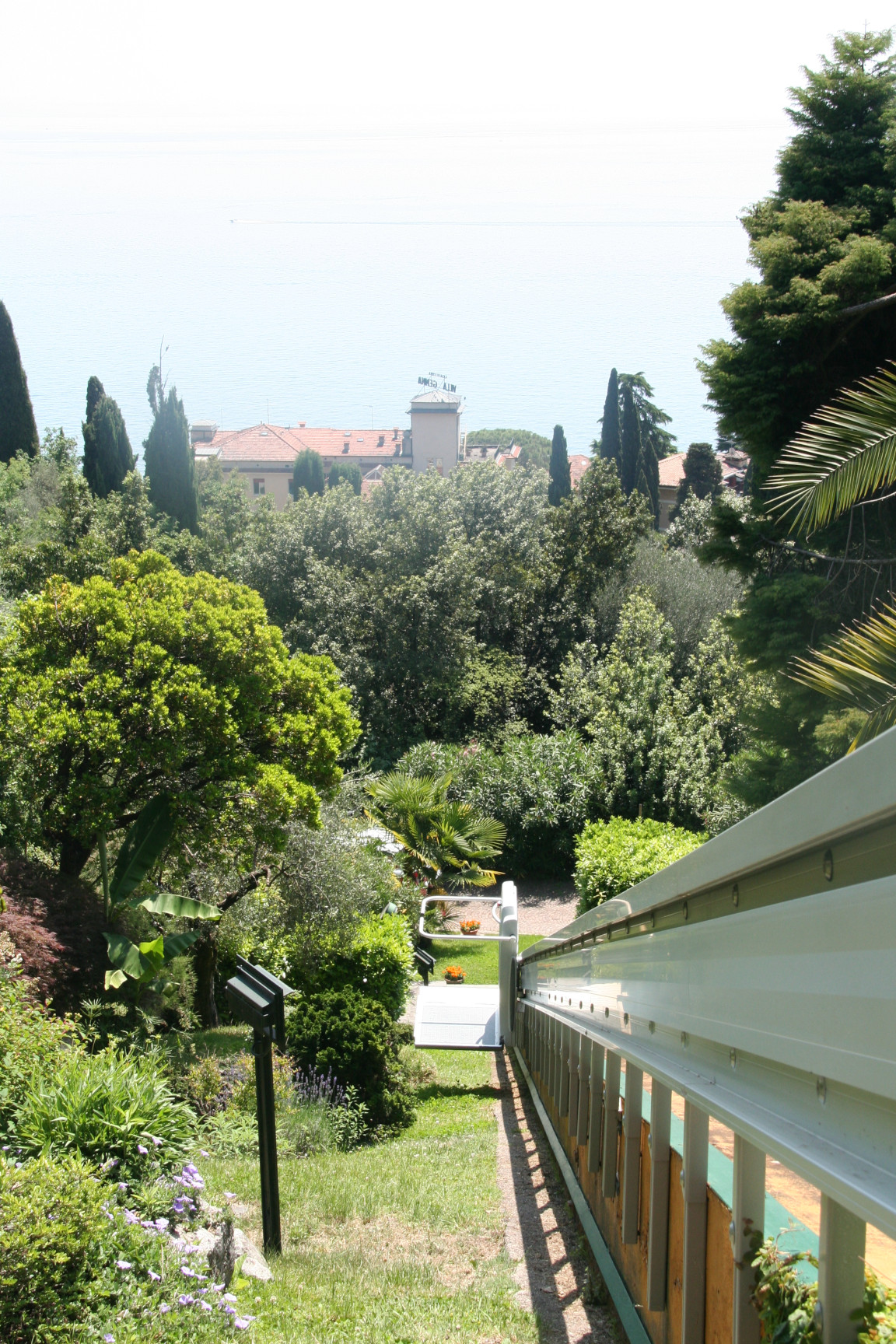

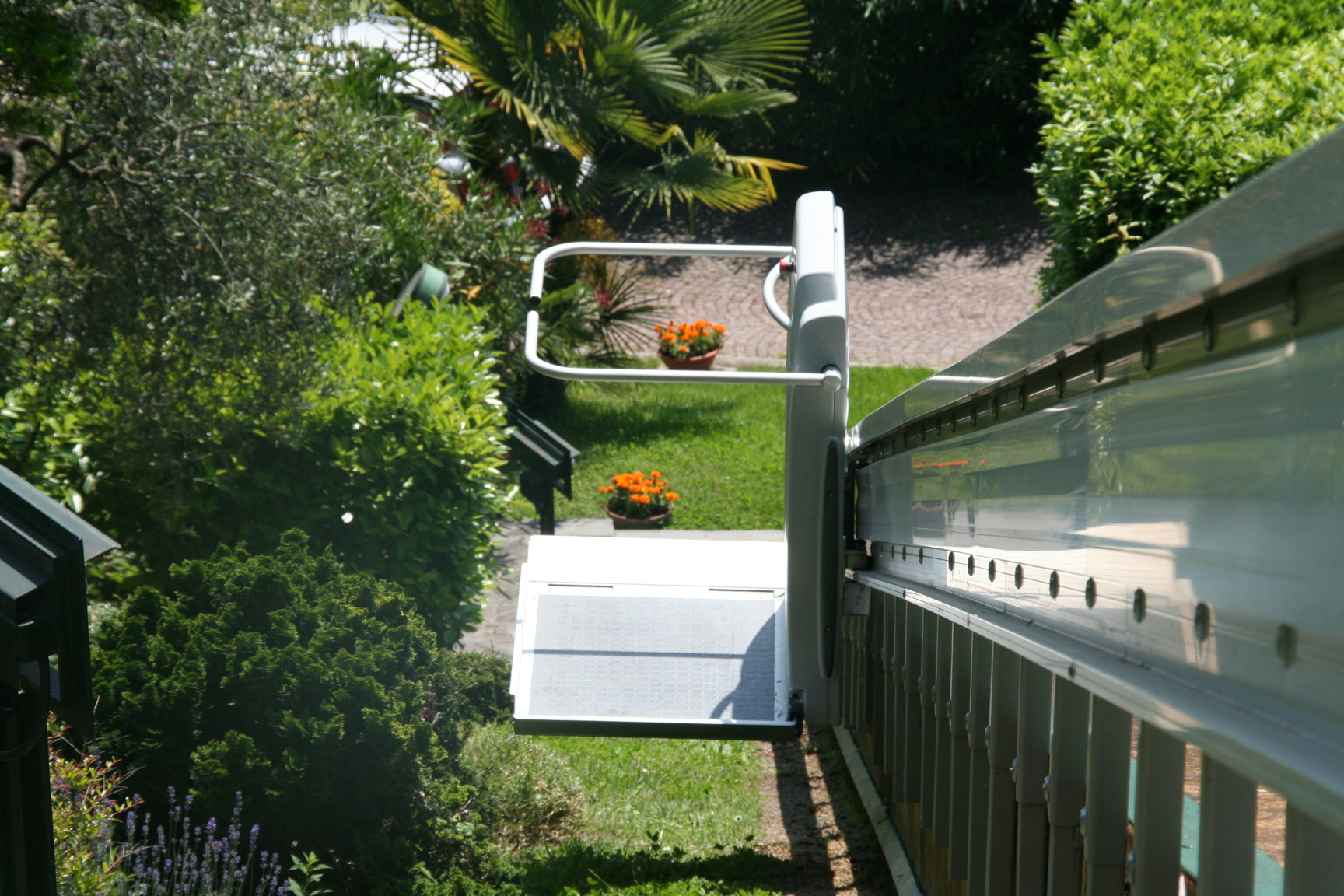

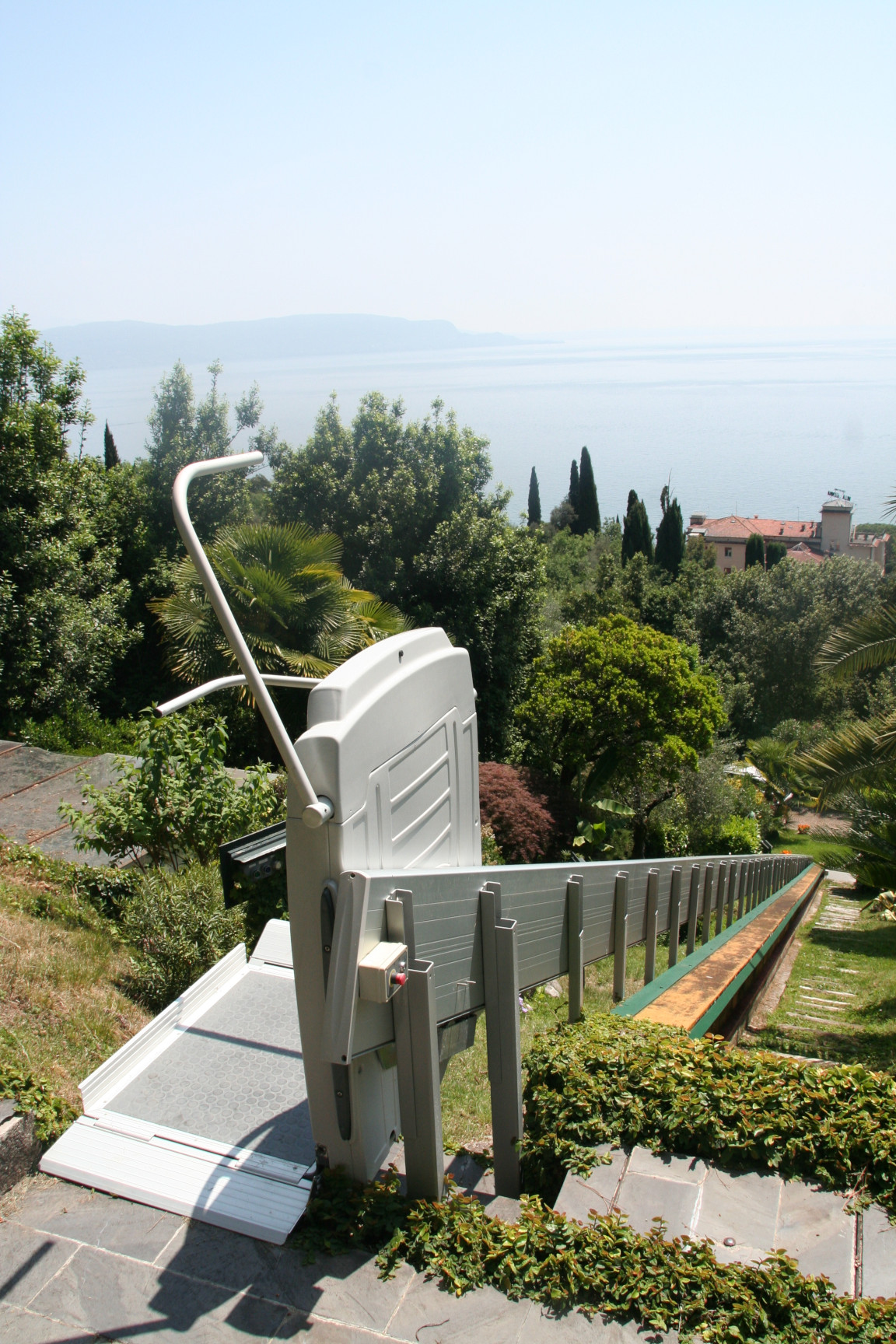

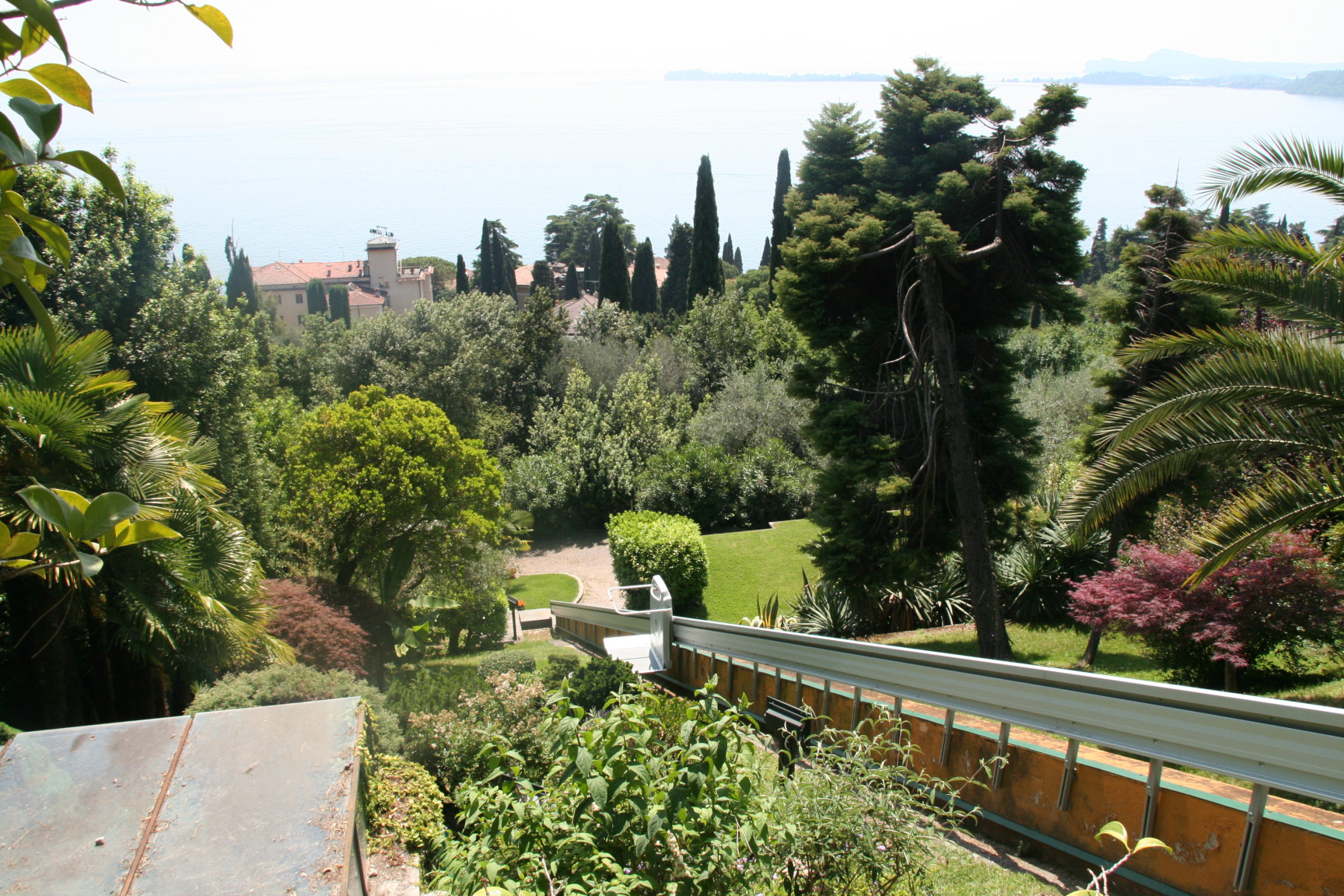

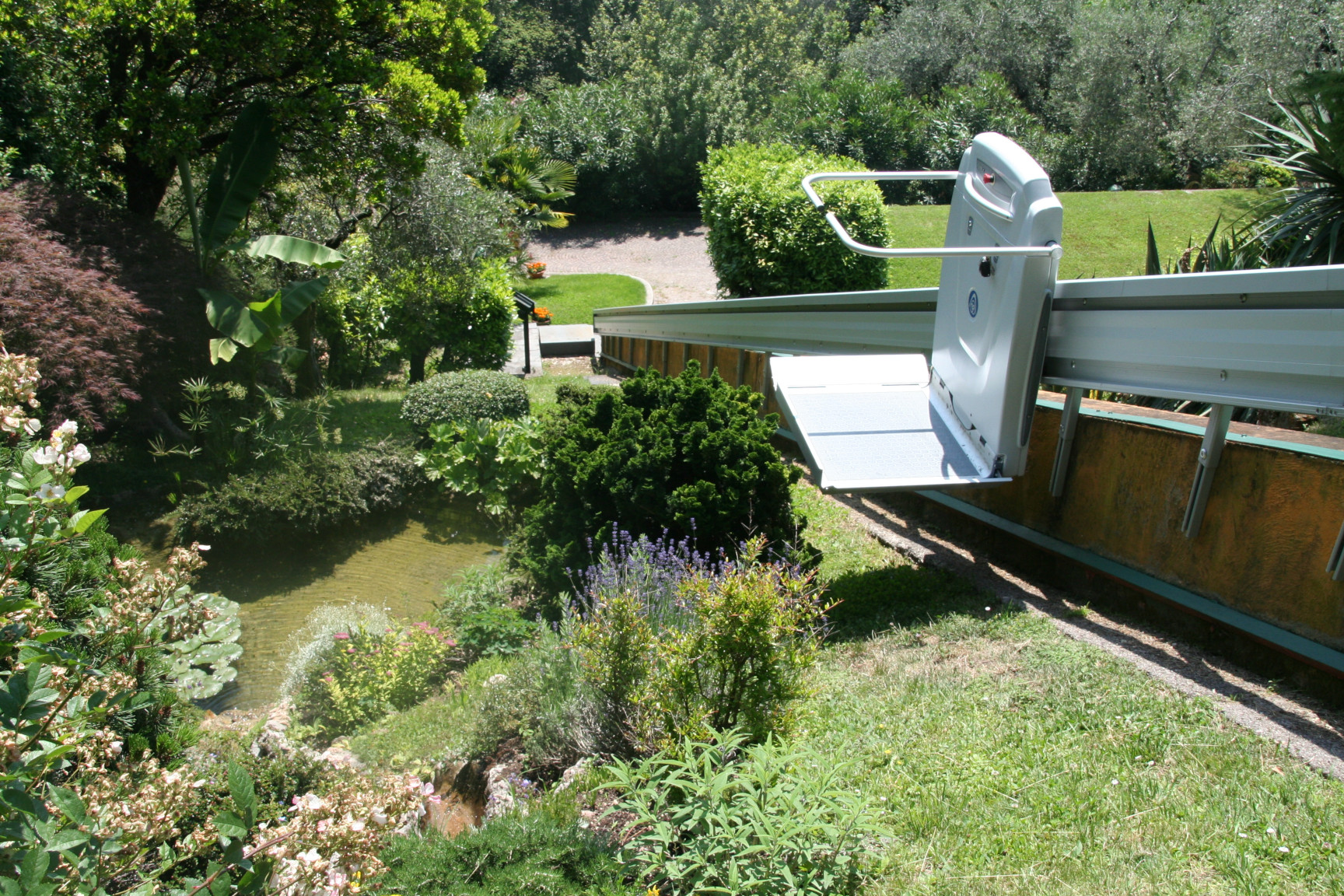

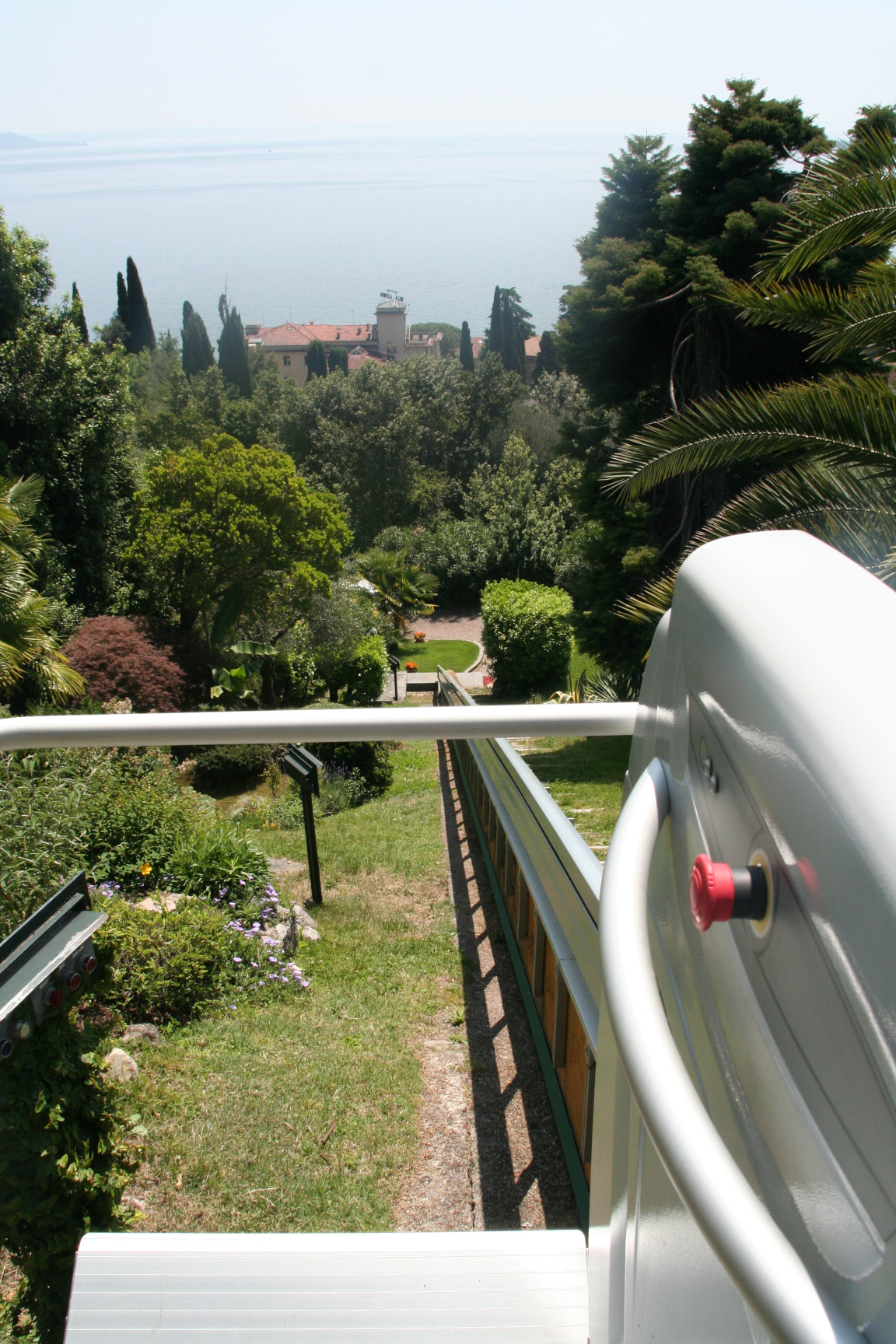

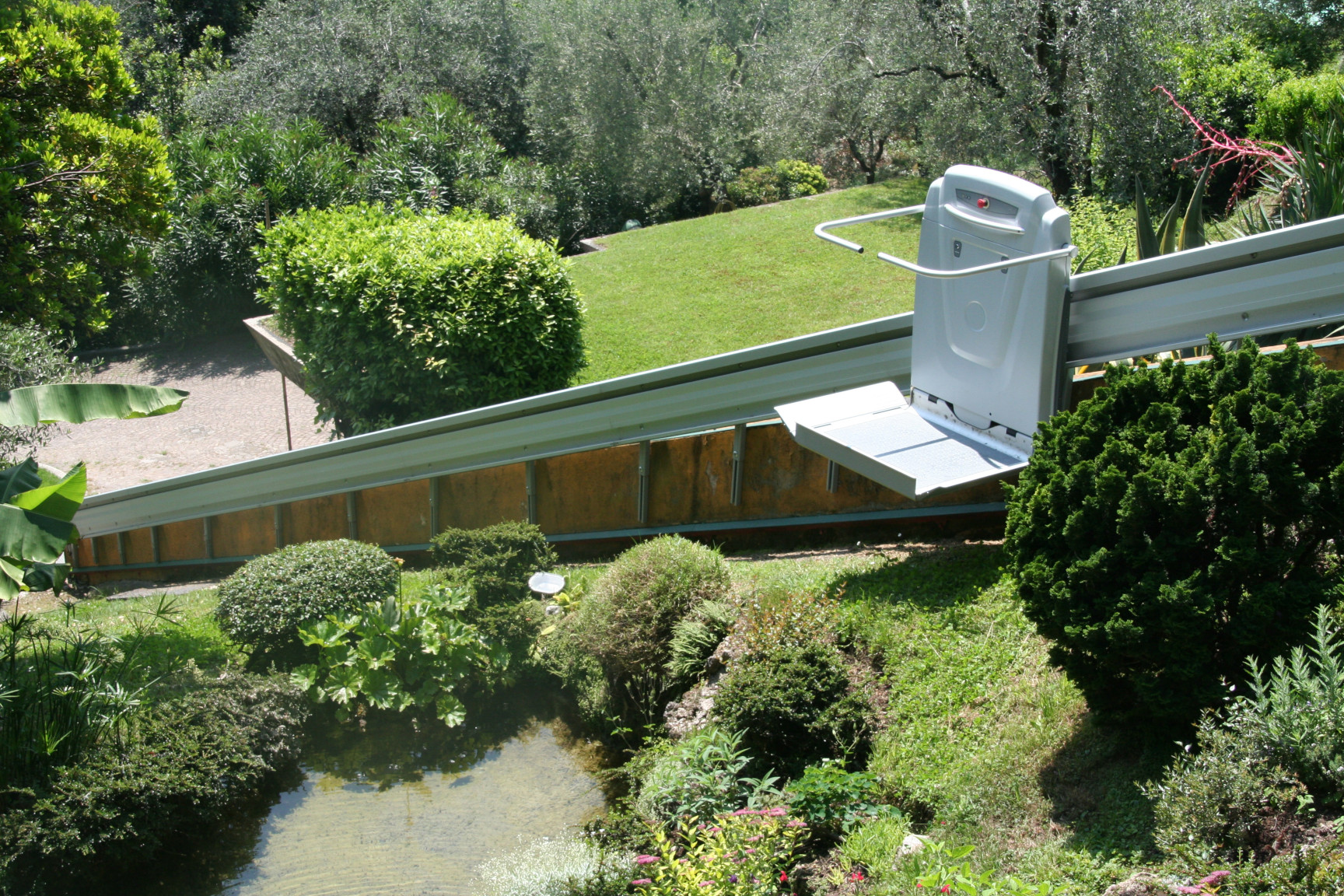

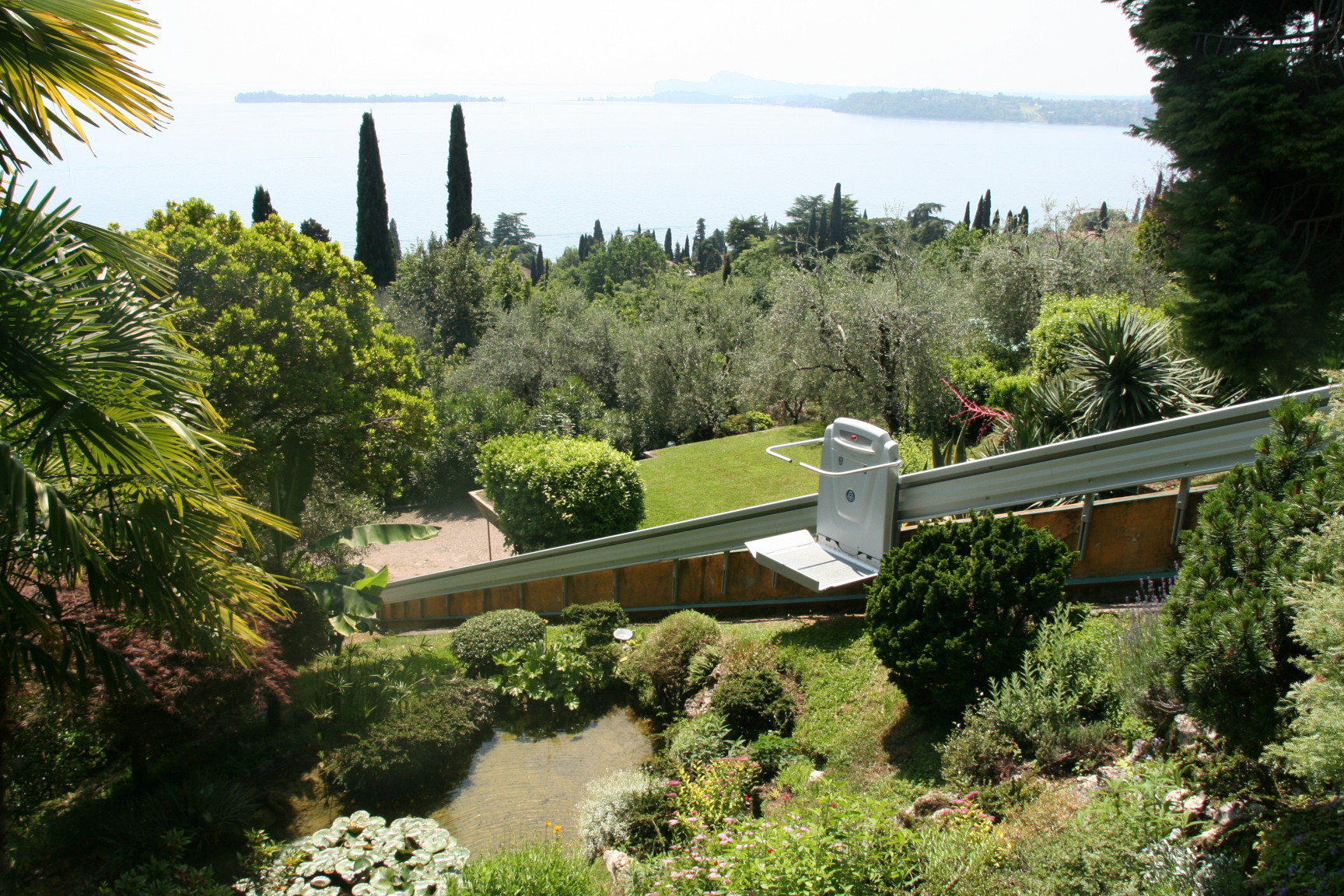

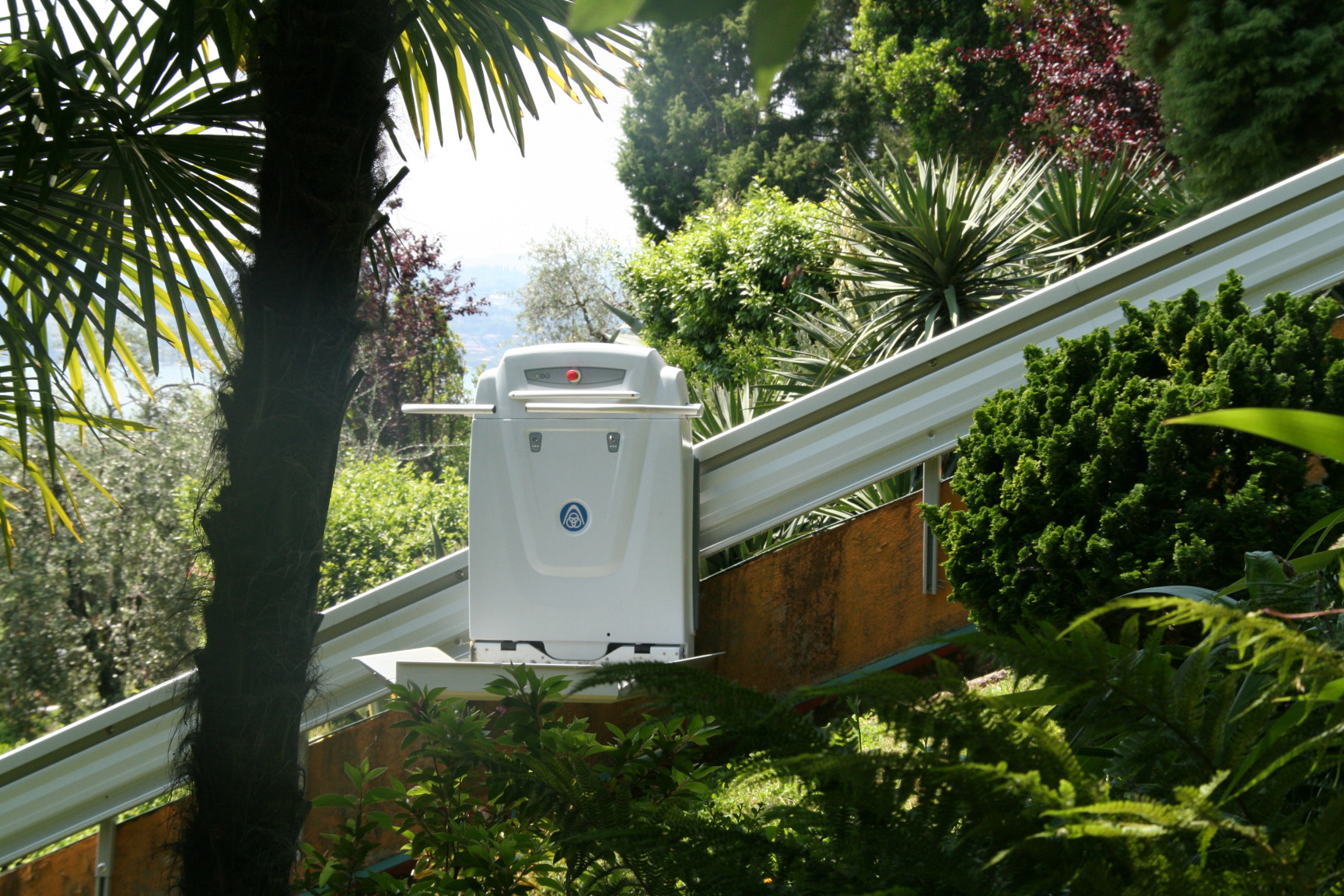

Yes, the Supra Linea is IP45 rated, providing reliable outdoor installation and weather resistance.
The Supra Linea travels at a safe and comfortable speed of approximately 25½ feet per minute.
The Supra Linea can accommodate staircases up to 65.5 feet in length, making it suitable for various building designs.
An optional uninterrupted power supply (UPS) is available, allowing the Supra Linea to operate safely during power outages. This feature is standard for commercial installations.
Safety features include anti-impact and anti-shearing devices, automatic safety bars, anti-slip flooring, and optional emergency call devices for added user protection.
The Supra Linea platform dimensions for commercial installations are 49.2 inches by 33.5 inches, ensuring ADA compliance for public and commercial spaces.
Regular maintenance by certified technicians is recommended annually to ensure optimal performance, safety, and longevity of the Supra Linea lift.
For residential installations, where ADA compliance is not required, the minimum staircase width depends on the platform size. The larger platform requires a minimum width of 48” with heavy stanchions or 44.5” when fixed to the wall, while the smaller platform requires a minimum width of 42.5” with heavy stanchions or 39” when fixed to the wall.
For ADA-compliant commercial installations, the minimum staircase width must be 48” with heavy stanchions or 44.5” when fixed to the wall to accommodate larger platform sizes required for public accessibility.
Contact Mobility123 today to learn more or schedule an installation consultation.
Additional information
| Model | Access BDD Supra Linea Inclined Platform Lift |
|---|
